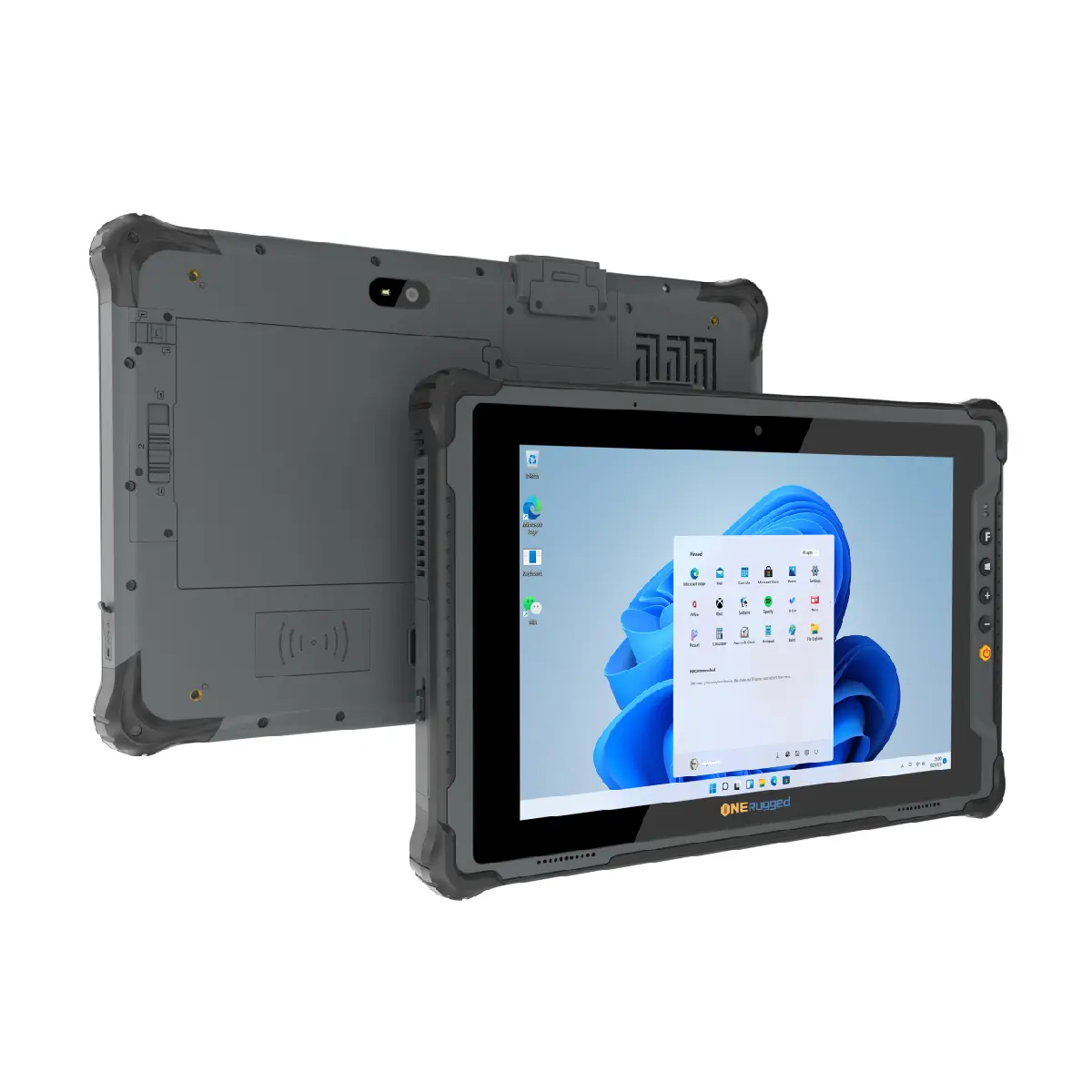

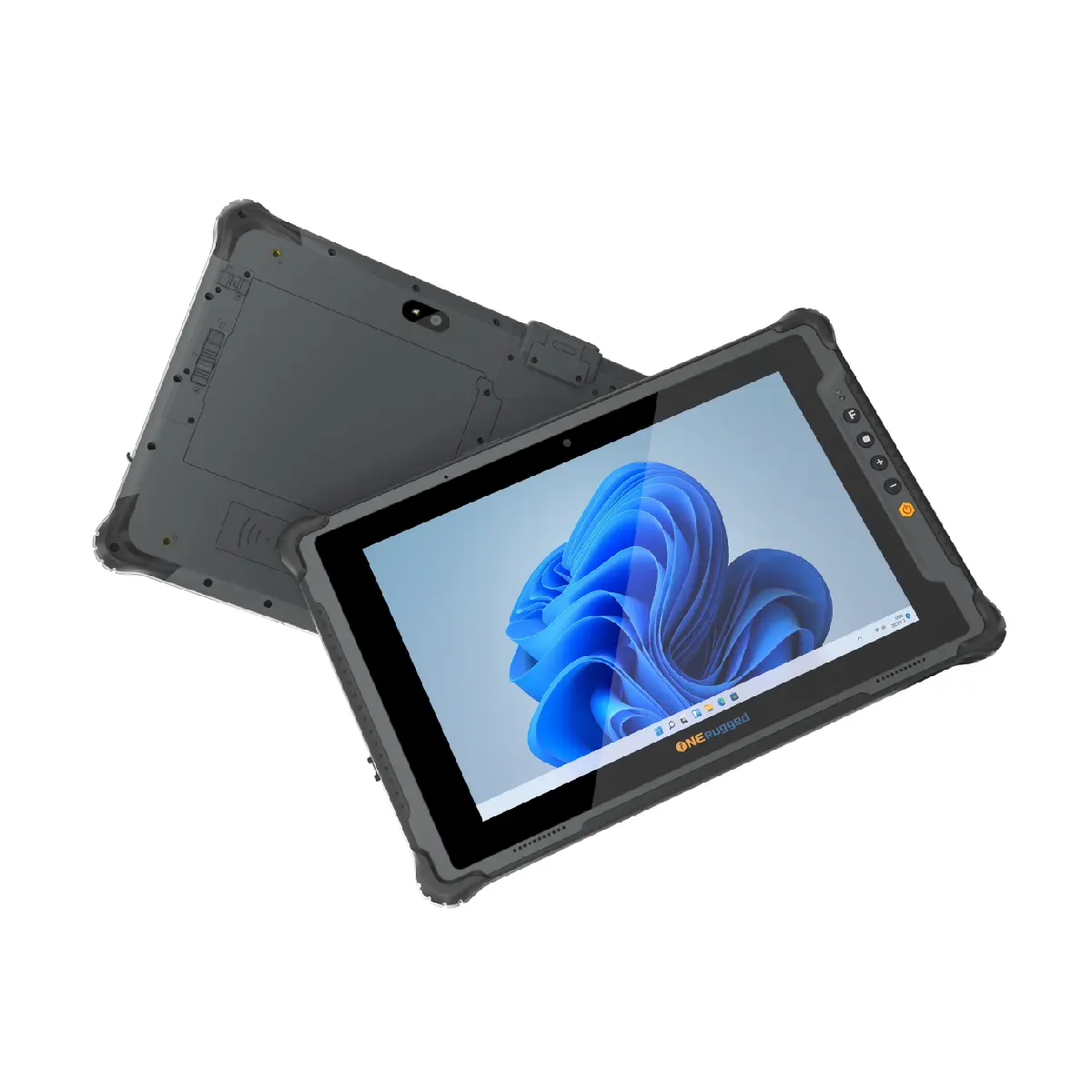

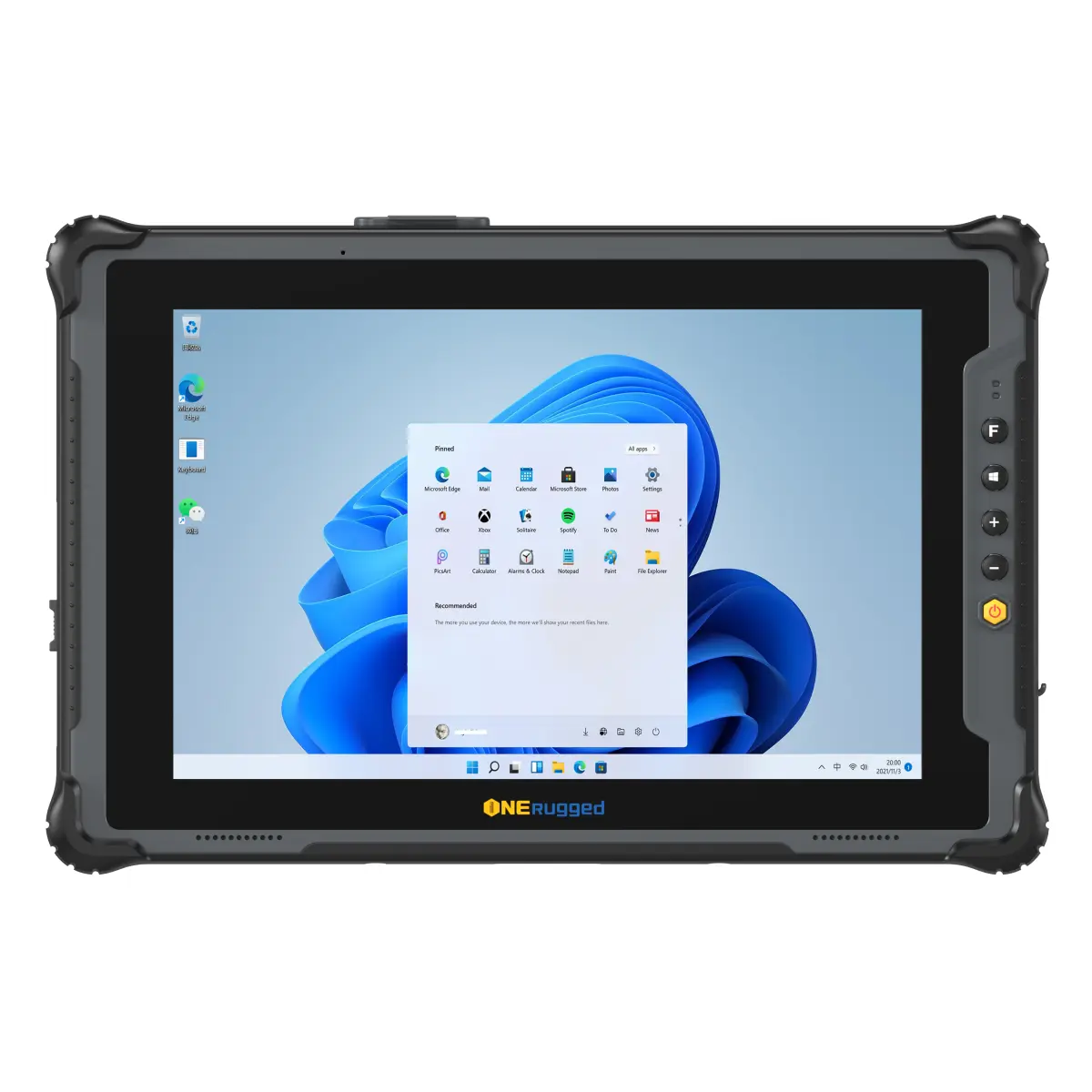

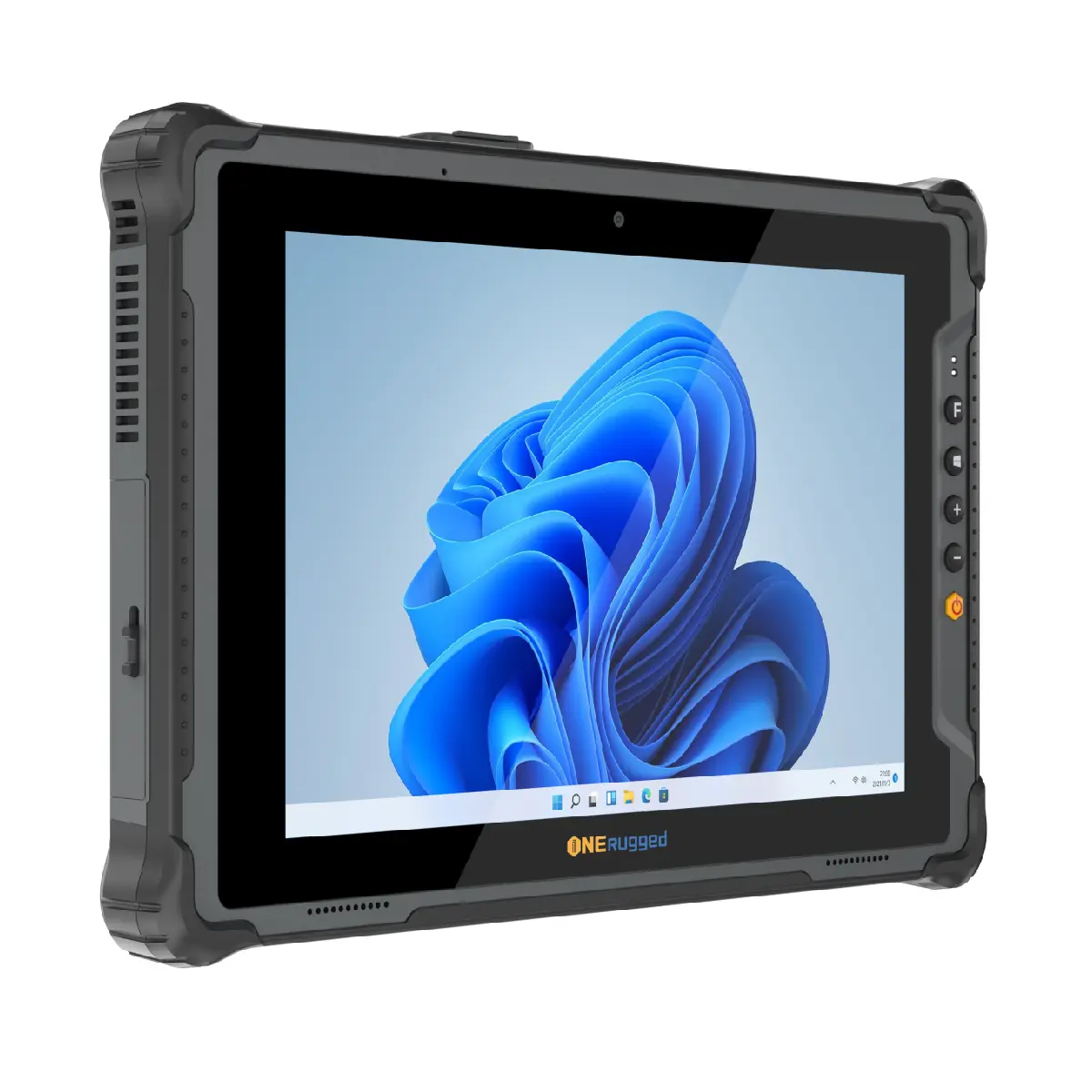

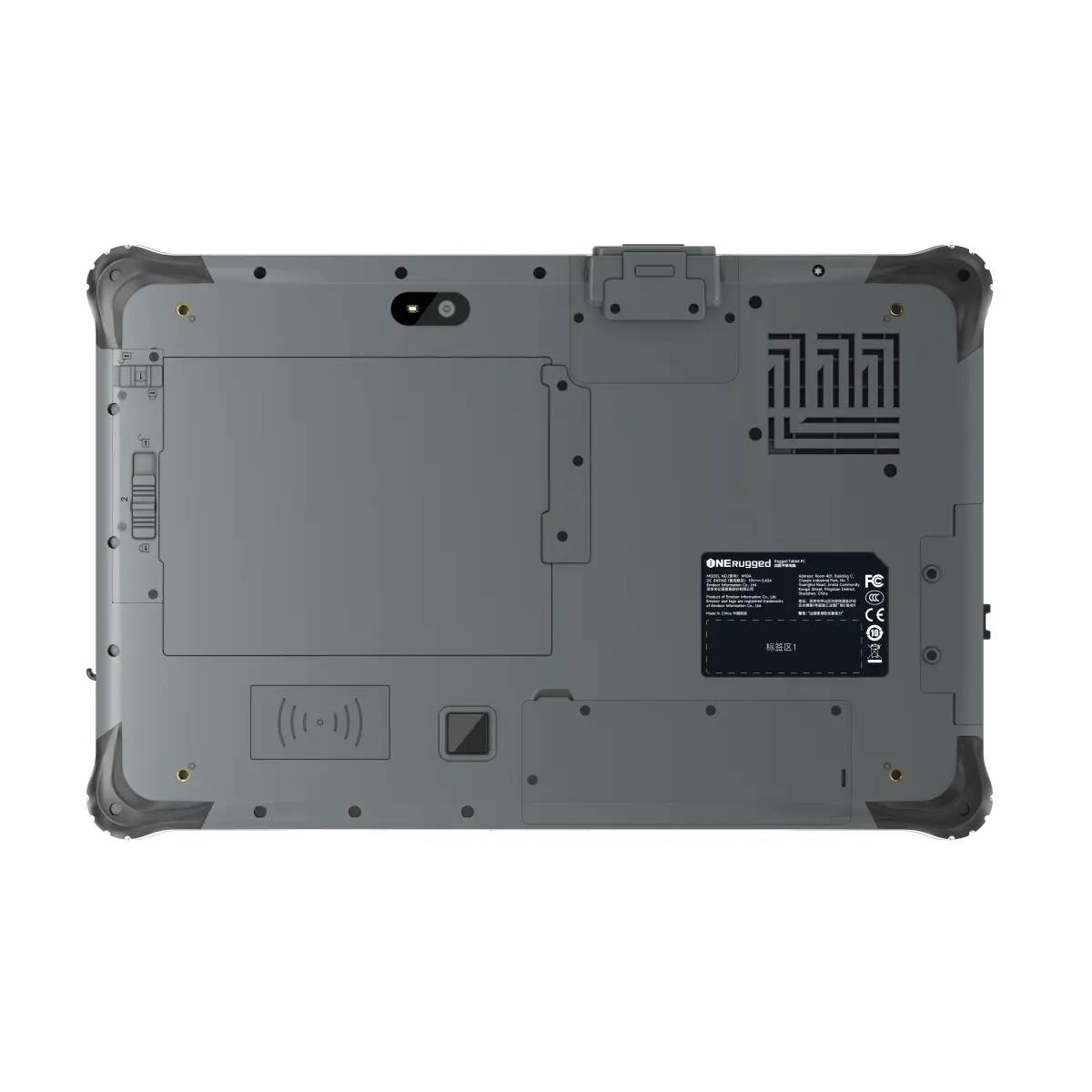

M10A
Rugged Mobile PC
- Intel Core i5/i7
- Windows 11
- RJ45/D89/UsB2.0/OR code (one out of four)
- 10.1inch 1200×1920,700nits
- 4G/WIFI6/BT5.1
- 5000mAh/7.4V + 860mAh/7.4V
- GNSS: GPS, optional GPS, Beidou, Glonass
- Memory: 16GB+128GB
- 292.1 x 192.1 x 23.8mm/1290g

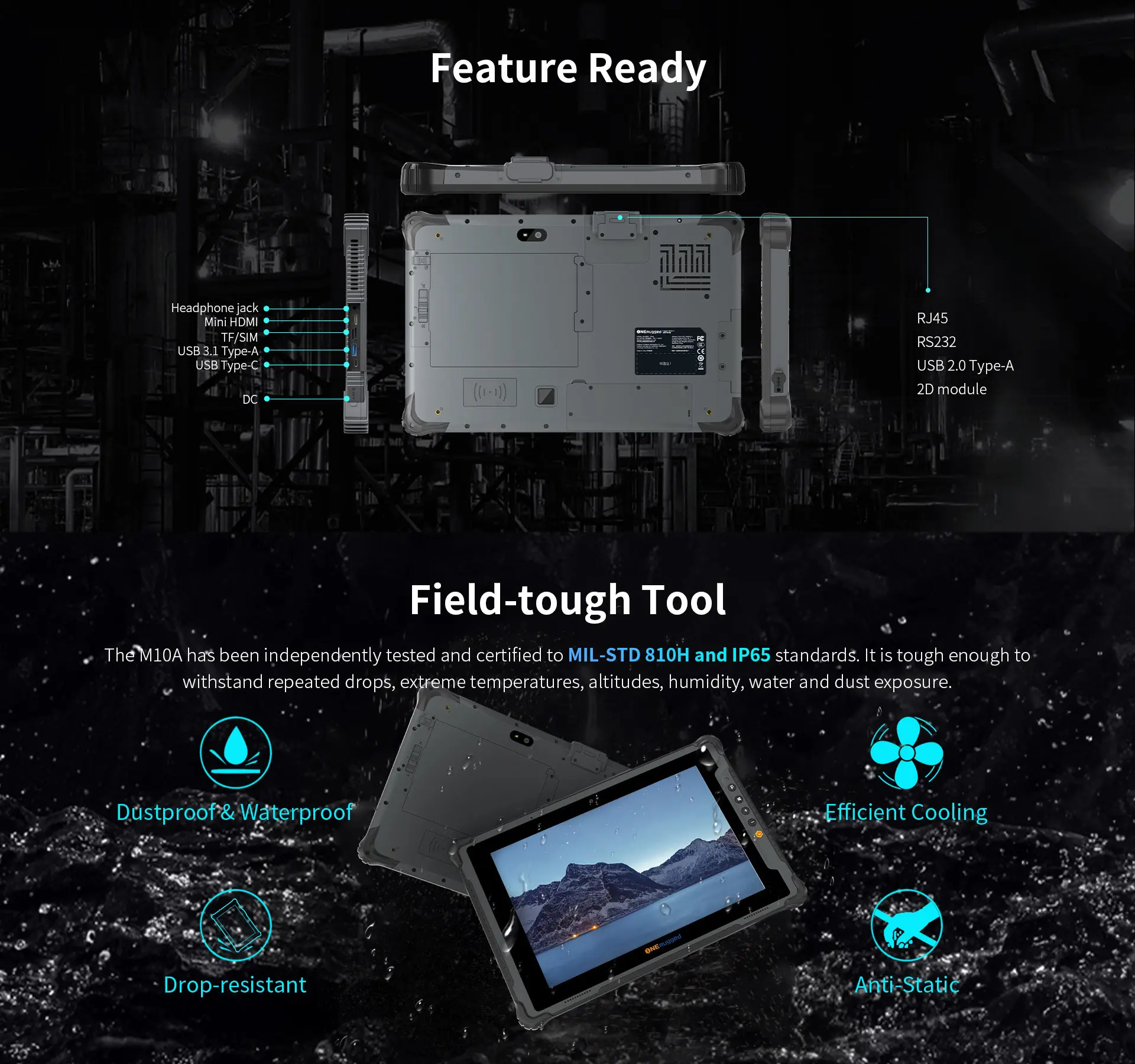

- IP65, MIL-STD-810H: 1.22m Drop Resistance
Specification Parameter
| CPU | 12th Generation Intel® Core™ i5-1235U/i7-1255U Processor | Operating System | Windows 11 |
| Memory | RAM 16GB DDR4L ROM 128GB SSD | Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacity TP G+G Hardness over 7H | Dimension/Weight | 292.1*192.1*28.9mm 1290g |
| Buttons | Power *1 Volume Key + *1 Volume Key – *1 Windows Home *1 F Key *1 | Speaker | 6Ω/1W Waterproof Speaker *1 |

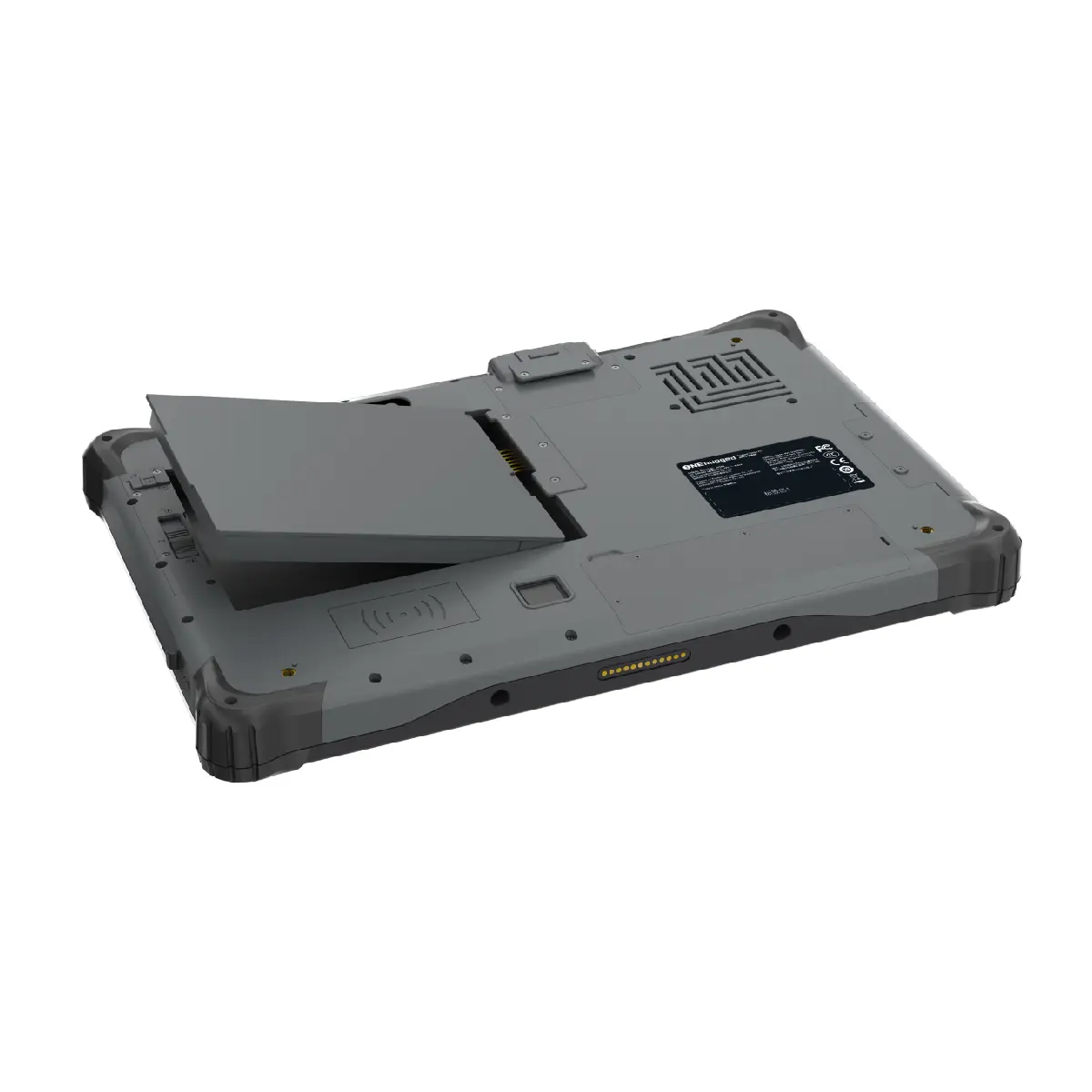

| Internet | 4G/Wi-Fi 6/BT5.1 | Battery | 7.4V/860mAh (Small Battery) Build in Lithium-ion polymer battery, Non-removable 7.4V/5000mAh (Big Battery) Removable Li-polyment Battery |
| Certification | IP65 | GPS | Support: GPS, Beidou, glonass |
| Adapter | DC 19V 3.42A | Data Collection | NFC Fingerprint (Built-in) |

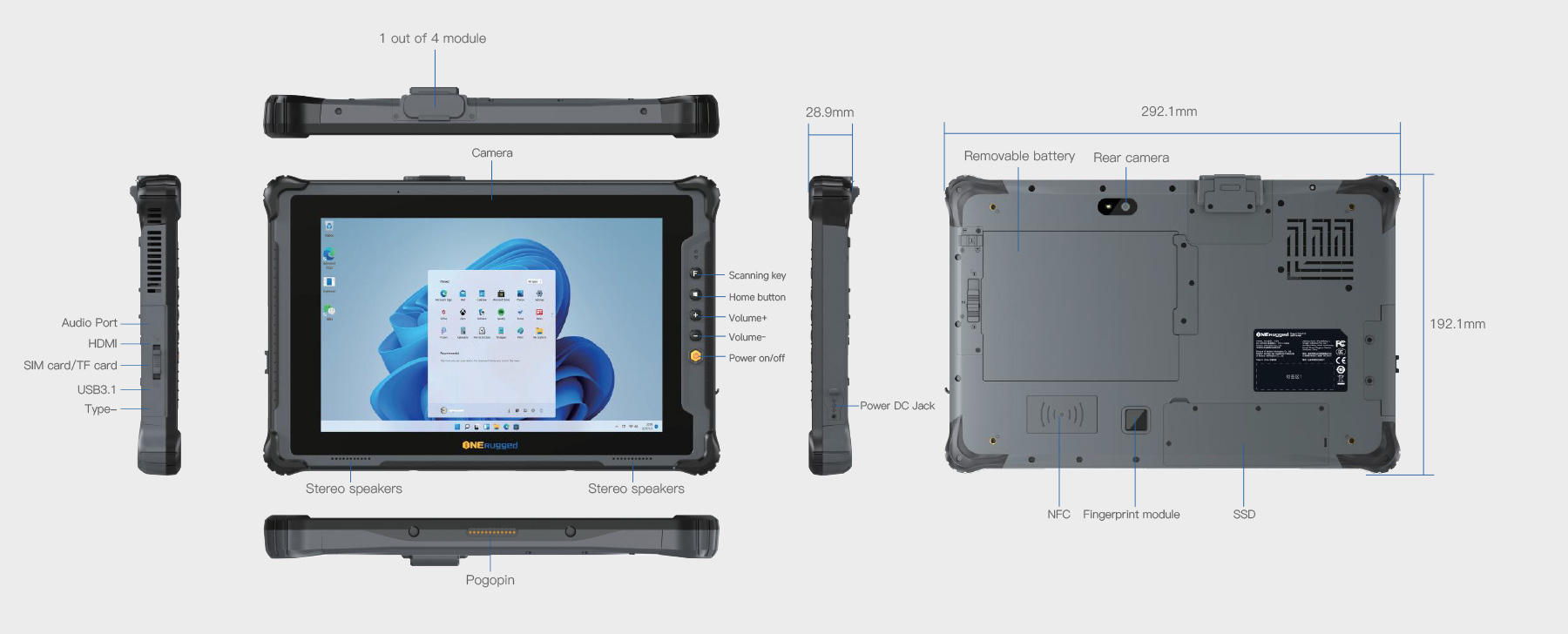

| Rugged Features | MIL-STD-810H: 1.22m drop Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C Humidity: 95% Non-Condensing Electrostatic discharge: 8kV contact discharge I 15kV air discharge | I/O Interface | USB3.1*1、Type C *1 $3.5mm *1 TF/SIM*1、DC*1 HDMI 2.1a mini*1 12PIN Pogo Pin *1 Expansion Module: RJ45(10/100M)*1/RS232*1 USB2.0 *1/QR Code Scanner |
Accessories
Standard
Adapter

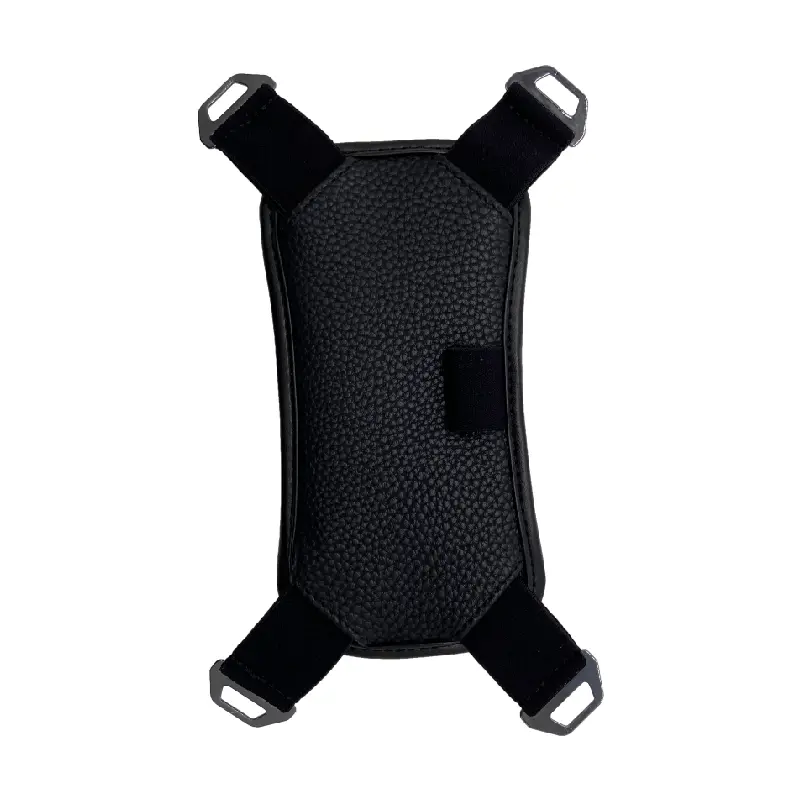

Hand-strap
Carry Handle
Download
M10A
Product Manual Download
