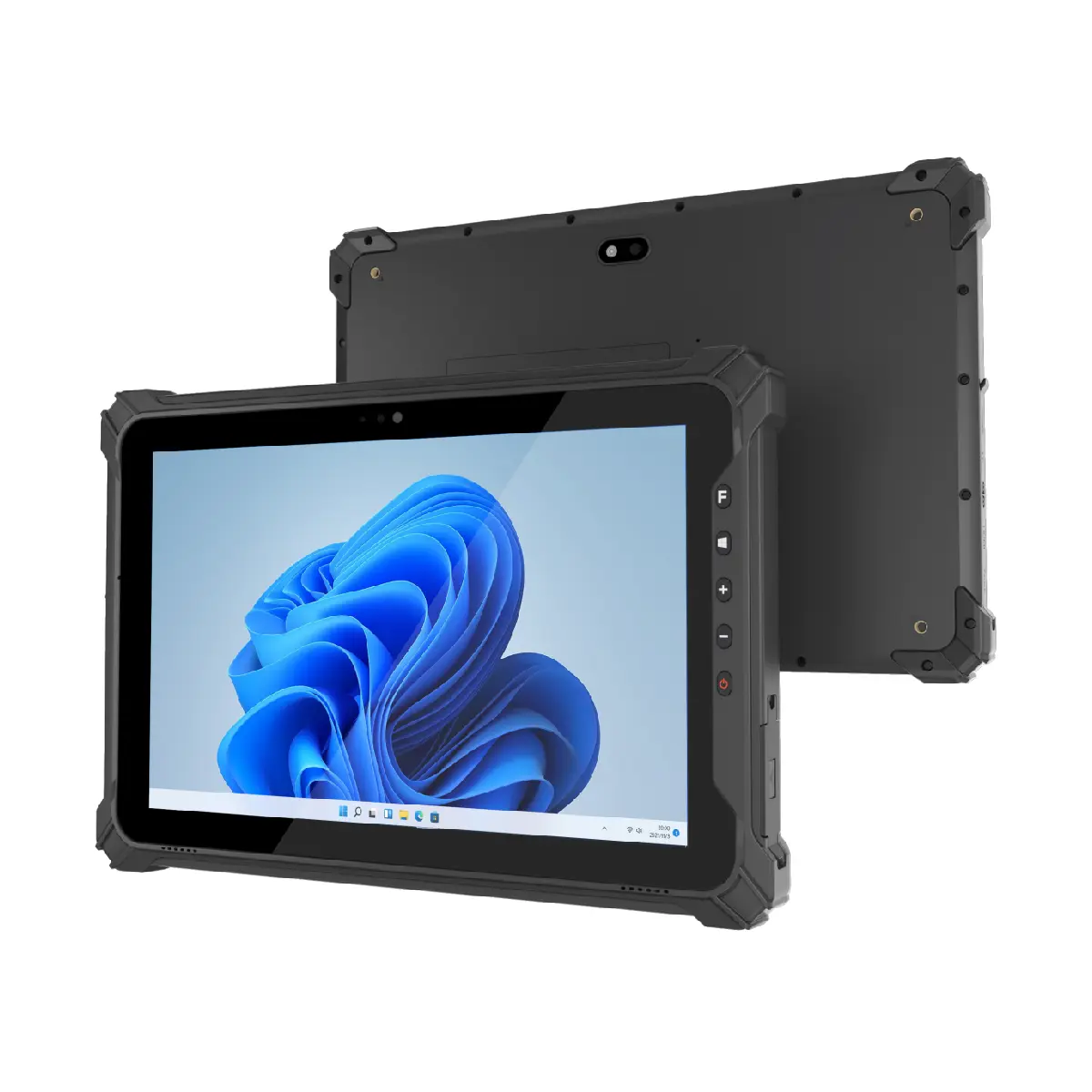

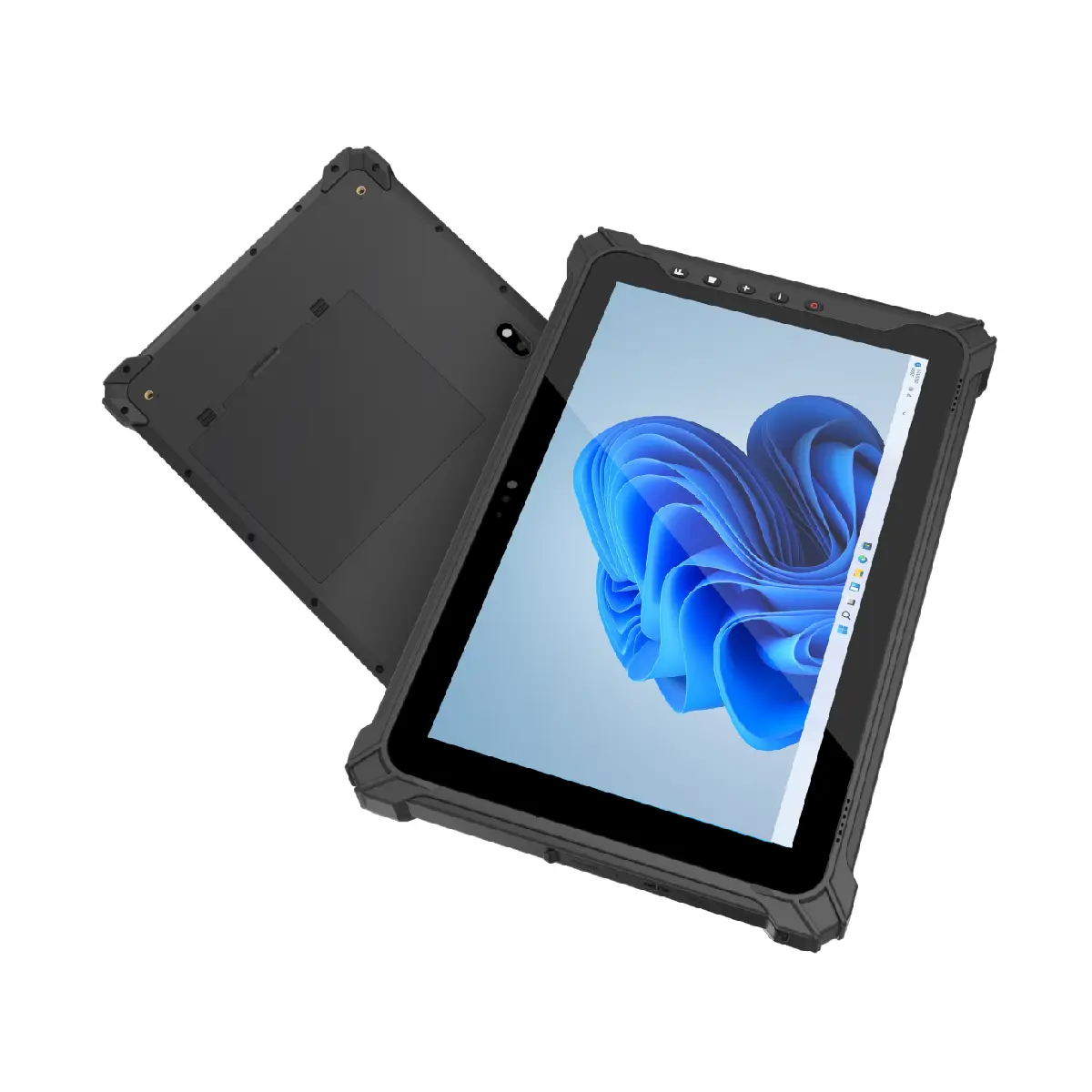

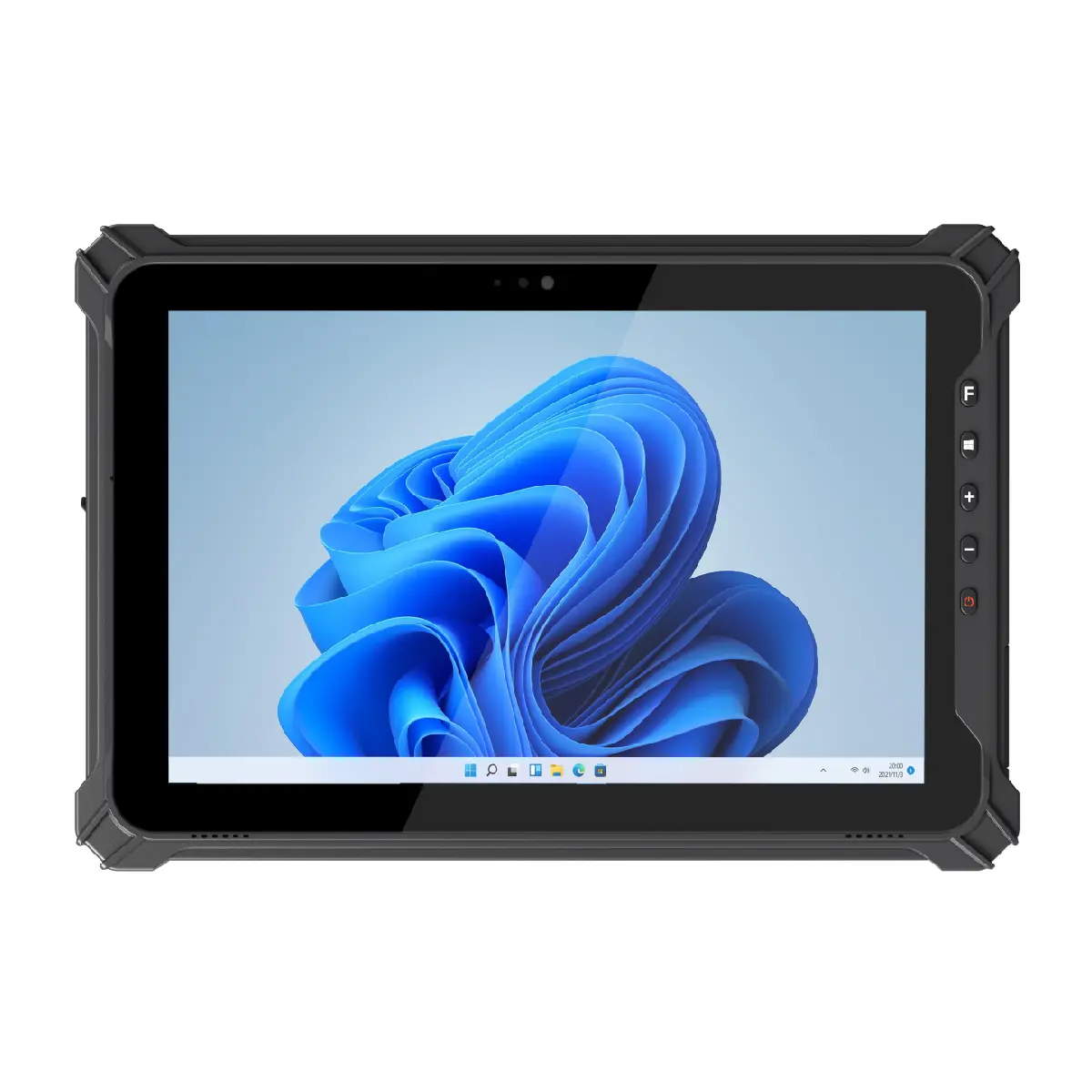

I17J
Rugged Tablet PC
- Intel® Celeron™ N5100 processor
- Windows 11/10 OS
- 10.1″ FHD display, optional 700 nits high-brightness screen
- 8GB RAM + 128GB storage
- RJ45/RS232/USB 2.0 3-in-1 module
- 5000mAh/7.6V removable battery
- 4G/dual-band Wi-Fi/BT 5.0 multi-communication modes
- Explosion-proof, energy-efficient, and IP rating
Specification Parameter
Basic parameters

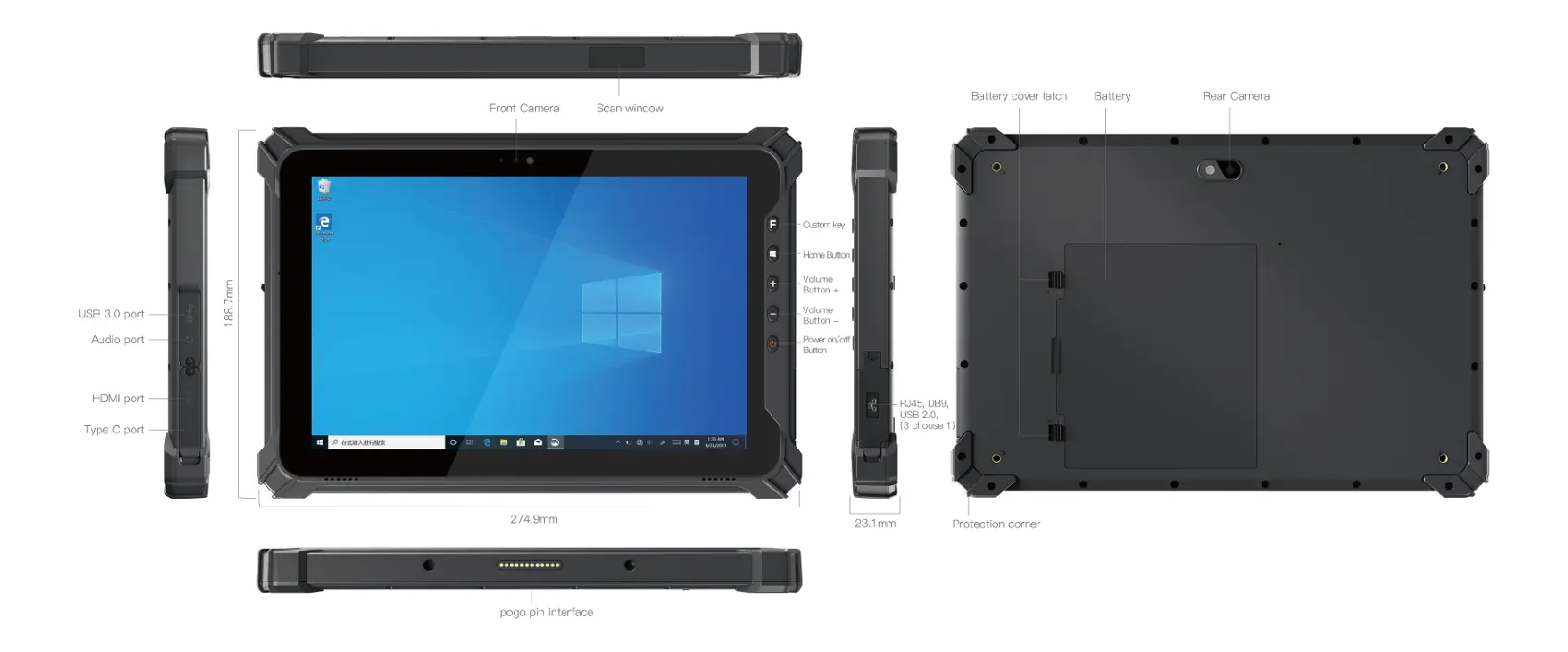

| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1140g |
| Device Color | Black |

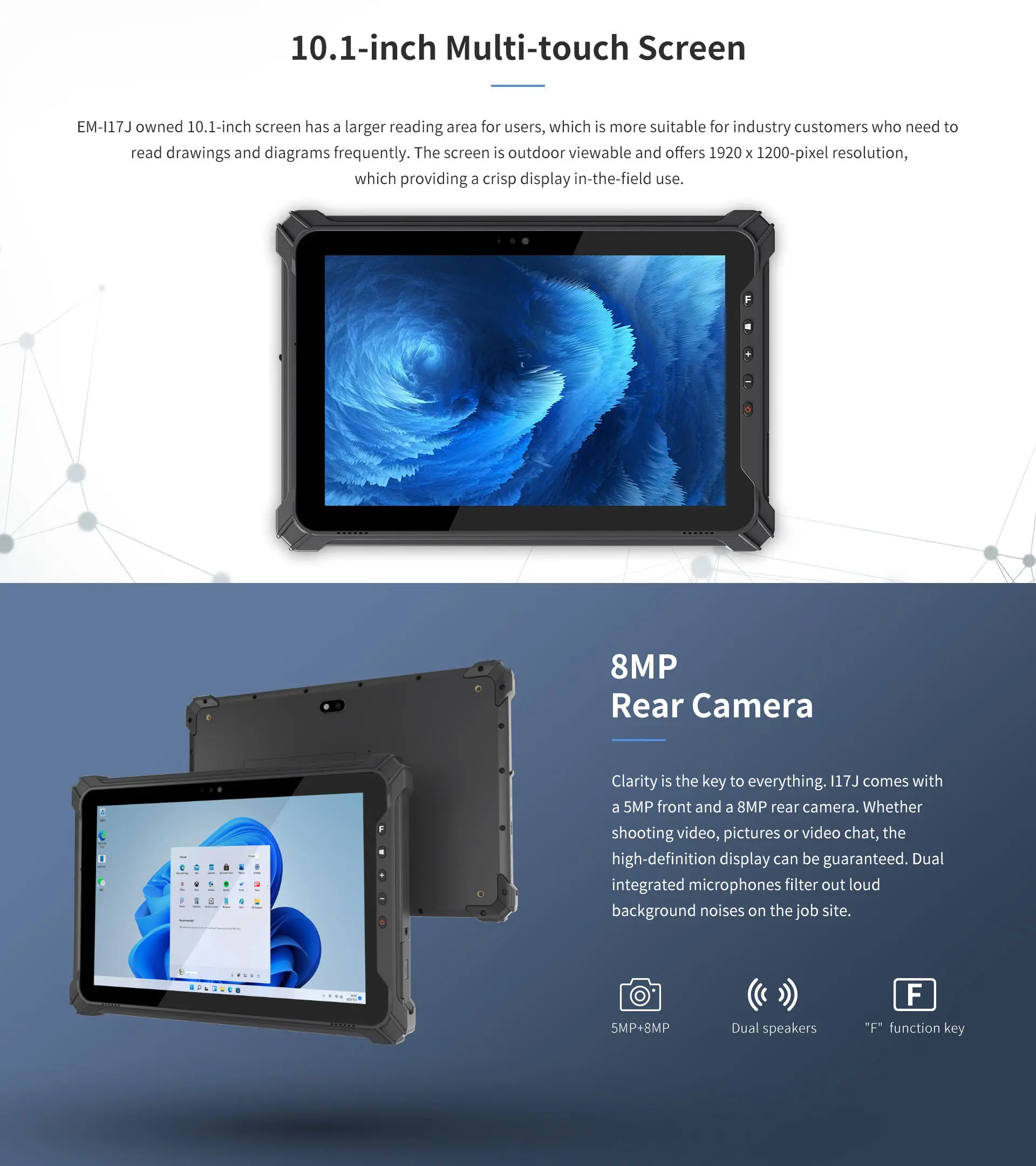

| LCD | 10.1 inch FHD 16:10, 1920×1200, 400 nits, Optional, HD 16:10, 1280×800, 700 nits |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |

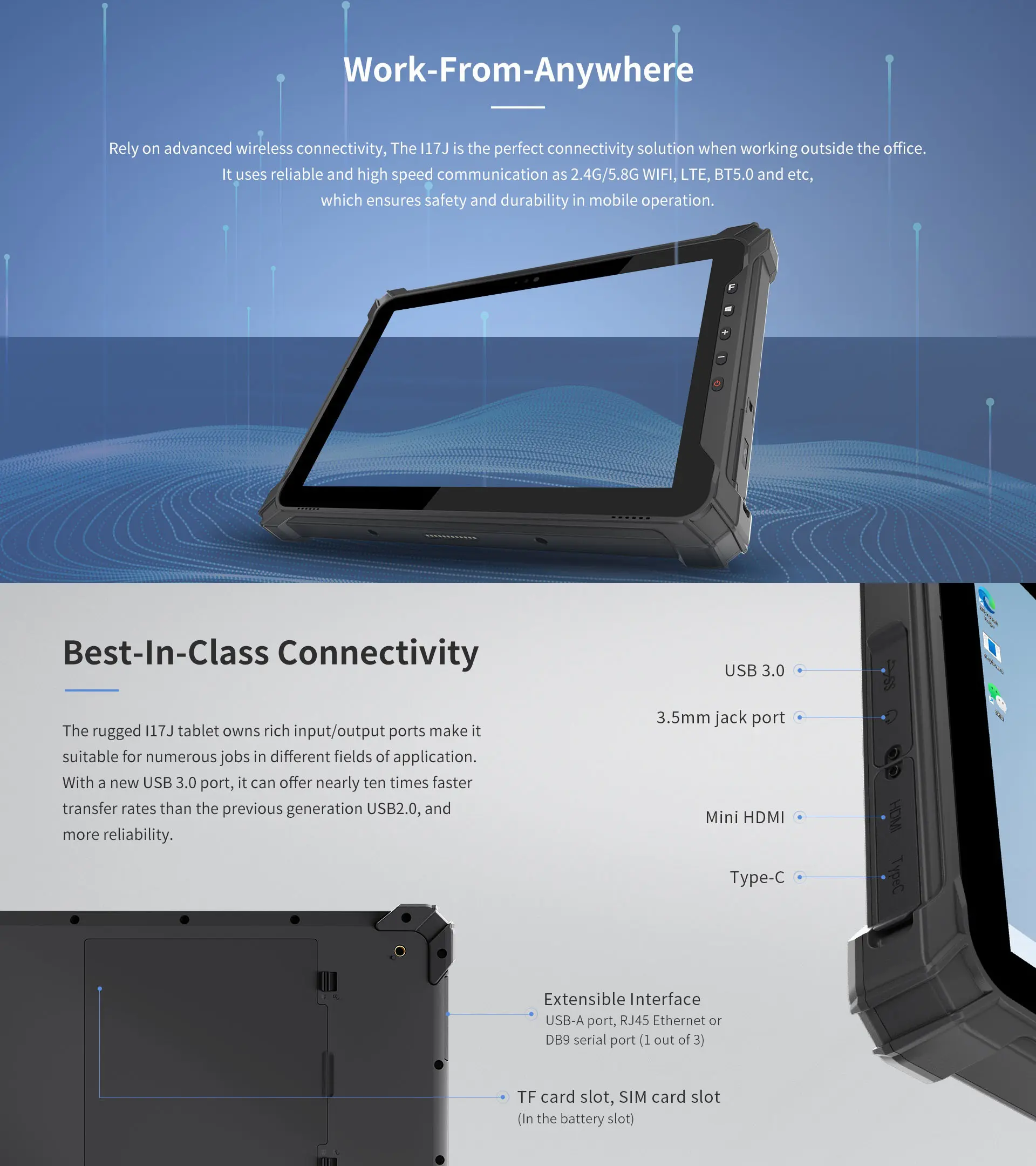

| I/O | USB 3.0 Type-A x 1, USB Type-C 3.1 x 1, SIM Card, TF Card (Three in one card holder), HDMI 2.0a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) | RJ45 (10/100M) x 1, DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | PD Fast Charge Adapter +Type-C Data Cable(1m) |
Network connections
| WIFI | 802.11 a/b/g/n/ac (2.4G+5.8G) |
| Bluetooth | BT5.0 Transmission distance: 10m |
| 4G | LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA: B1/B5/B8, GSM: B3/B8 |
| GNSS | Support GPS, Glonass |
Performance parameter
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 11/10 |
| RAM | 8GB |
| ROM | 128GB |
Battery

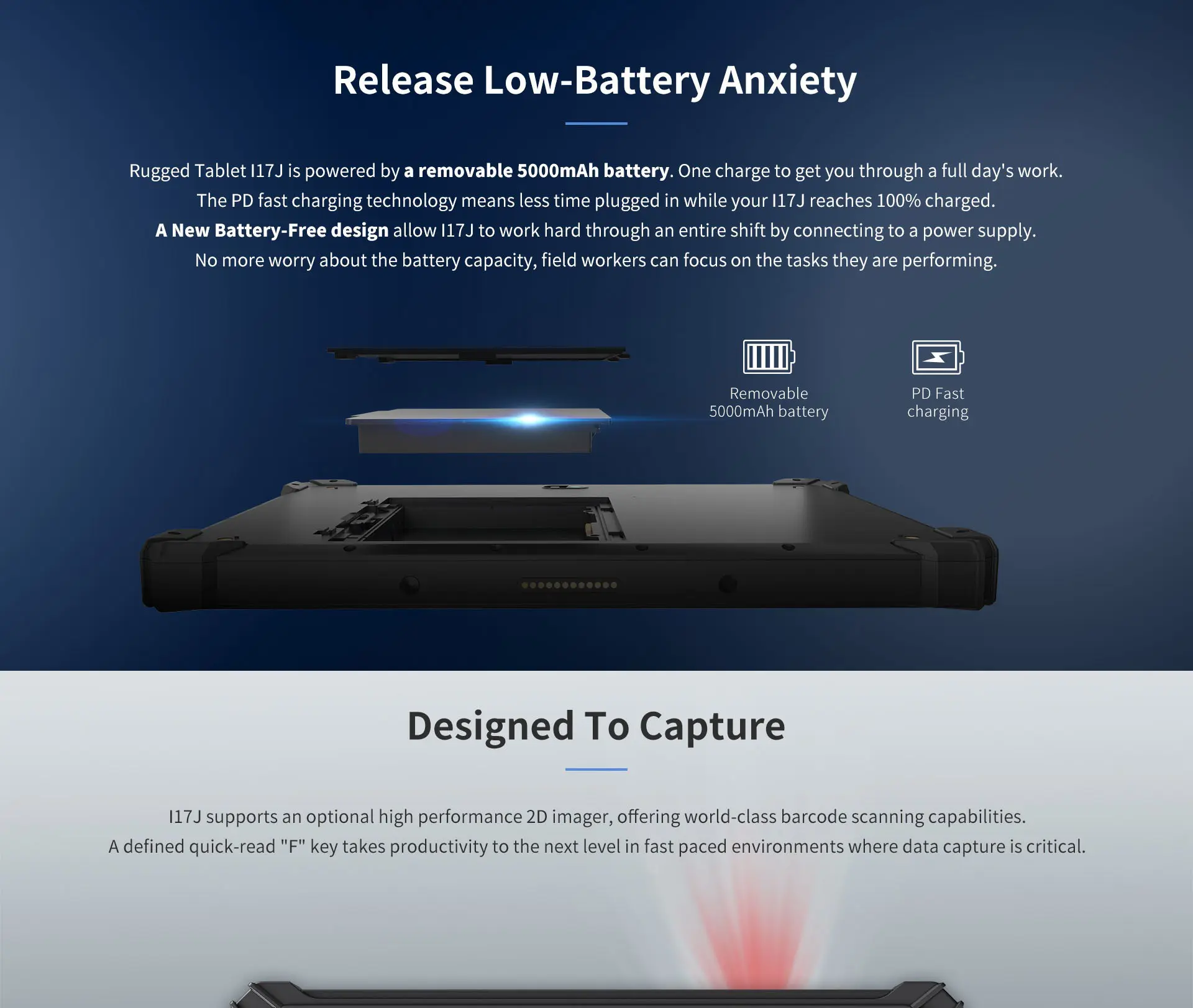

| Capacity | 5000mAh/7.6V |
| Type | Removable Li-polymer battery |
| Endurance | 8hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
Reliability
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |
Data Collection
| NFC | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
| 2D | Optional |

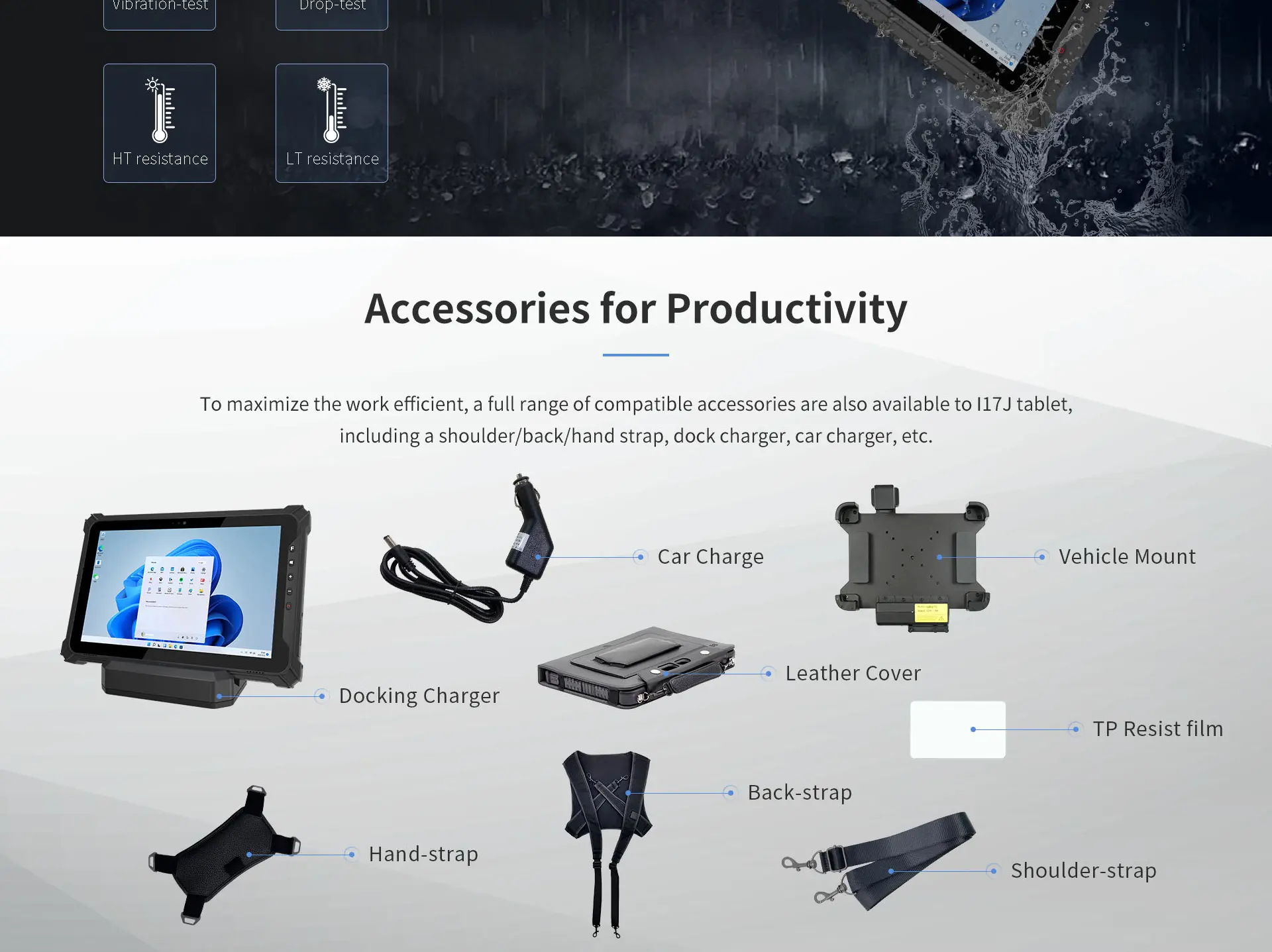

Accessories
Standard
Hand-strap

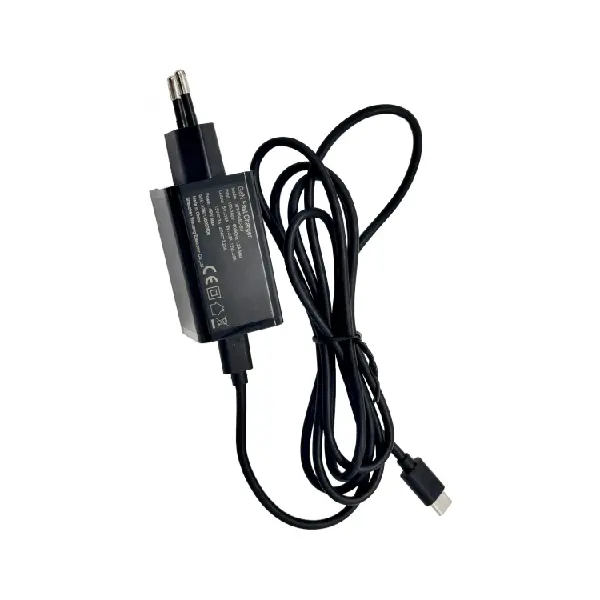

PD Fast Charge Adapter
Optional
Docking Charger
Car Charger
TP Resist film
Vehicle Mount
Quad charging
Download
I17J
Product Manual Download
