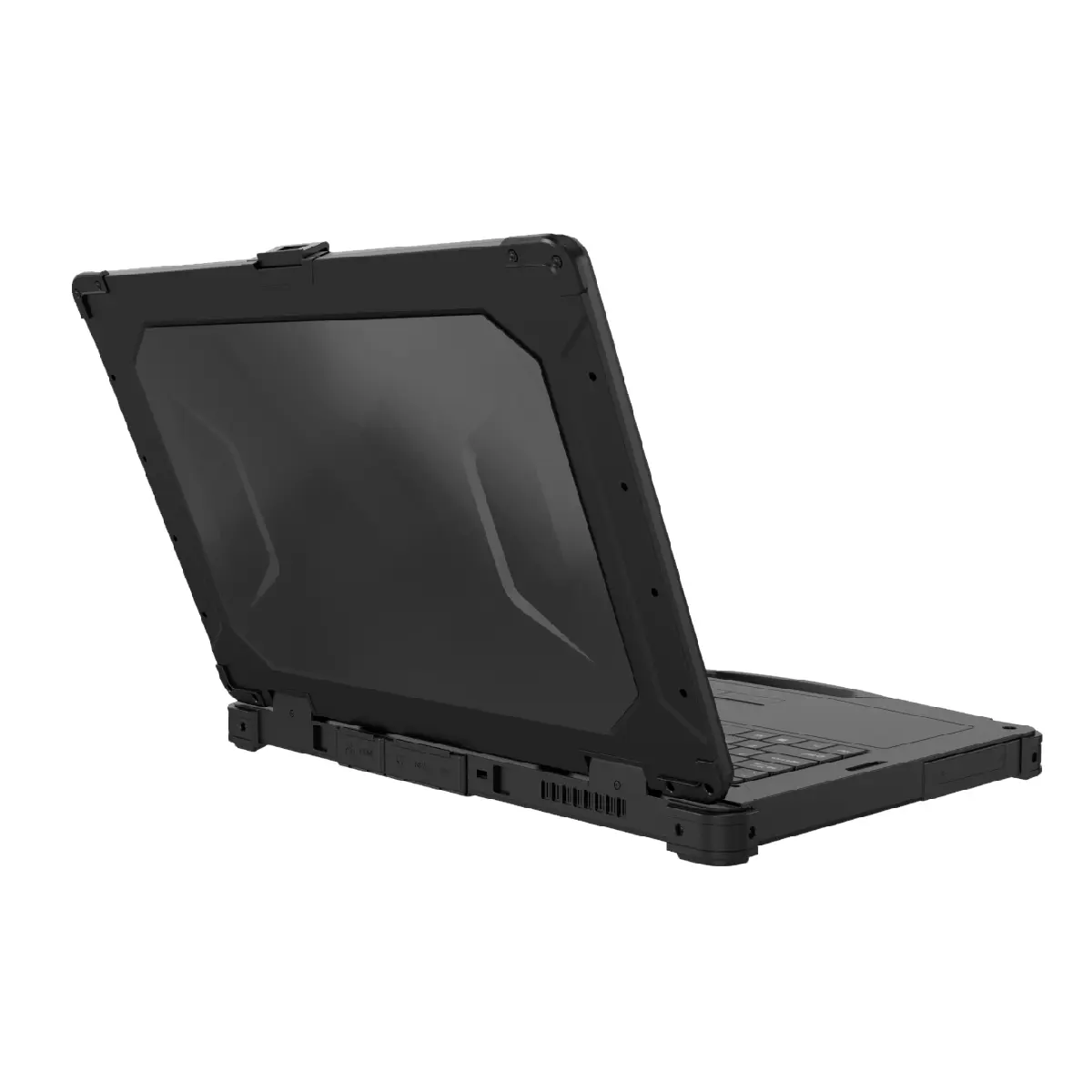

X15A
High-Performance Rugged Notebook
- i5-1235U / i7-1255U processor
- Supports Windows 11 OS
- 15.6” 1000 nits HD high-brightness display
- 4G/5G/Wi-Fi 6/Wi-Fi 6E/BT 5.1 multiple communications
- Small + large batteries; large battery removable with hot-swap support
- Supports NFC, fingerprint module, and backlit keyboard
- Rich interfaces, supporting USB 2.0/USB 3.0/HDMI/RJ45/DB9 ports
- IP65 rating, 1.22m drop resistance
Specification Parameter

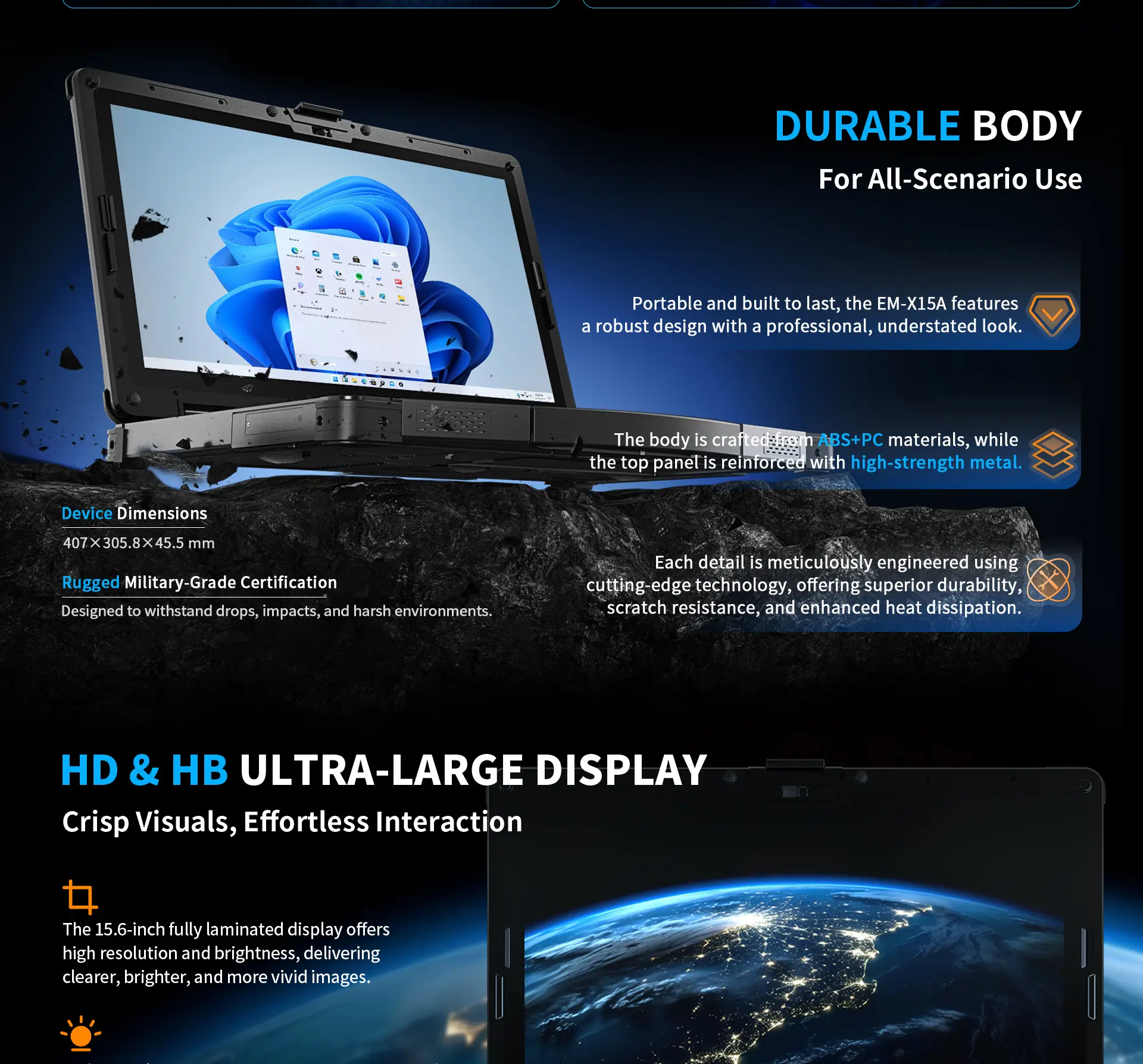

| Durability | • MIL-STD-810H certified • 4ft, 26 drops (each side, edge, and corner) • IP65 certified • ±4kV contact discharge, ±8kV air discharge |
| Operating System | • Windows 11 Pro • Optional Windows 11 Home/IOT |
| Processor | • Intel i5-1235U (12MB cache, up to 4.4GHz, 10 cores, 12 threads, TDP 15W) • Optional Intel i7-1255U (12MB cache, up to 4.7GHz, 10 cores, 12 threads, TDP 15W) |
| Graphics | • Intel® Iris® Xe |
| Memory | • 16GB DDR5 SO-DIMM • Optional 32GB DDR5 |
| Storage | • 256GB PCIe SSD • Optional 512GB/1TB SSD |

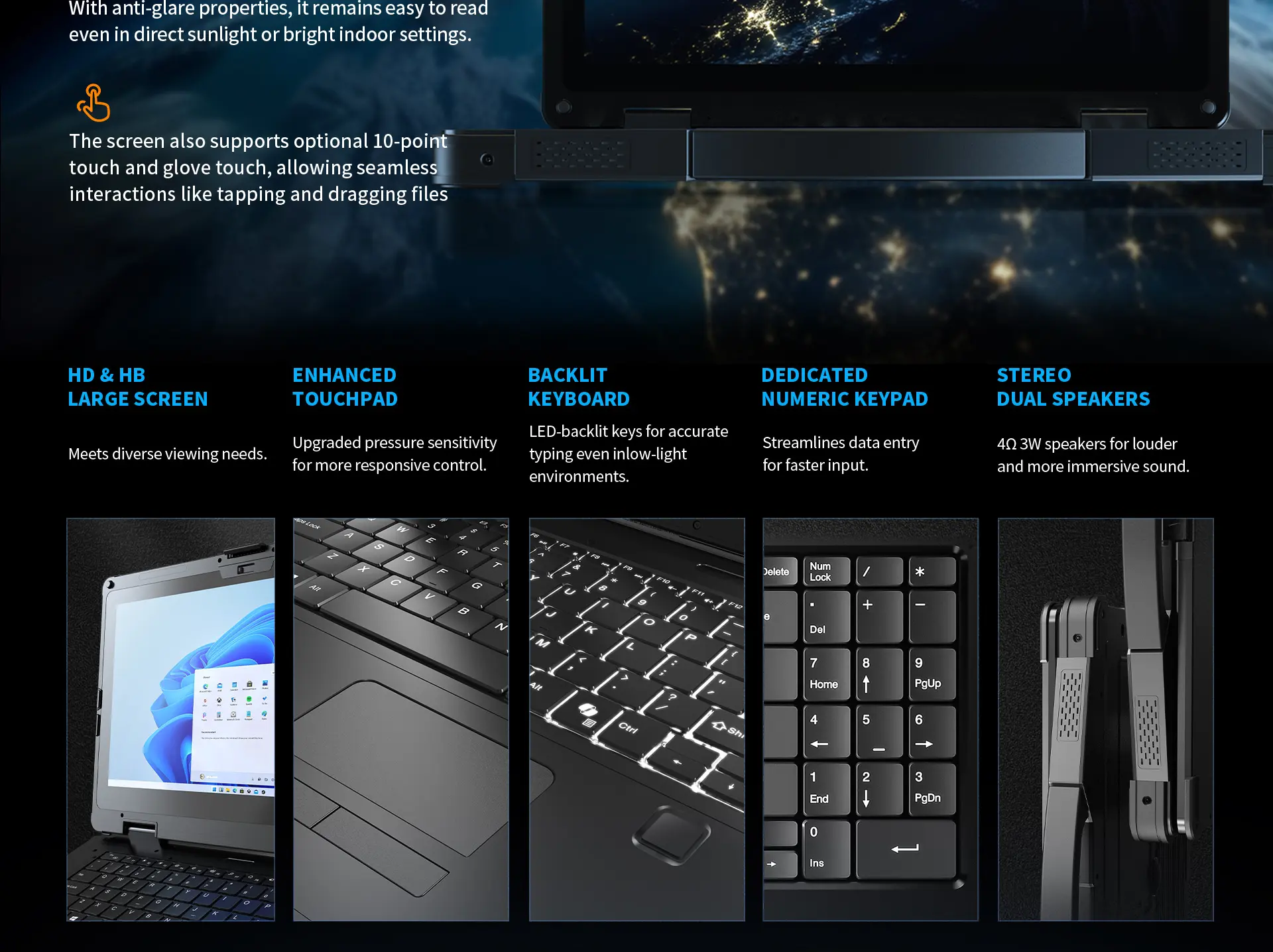

| Display | • 15.6″ FHD (1920×1080), 1000 nits sunlight readable display • Optional 10-point capacitive touch screen, supports glove touch mode |
| Audio | •Integrated microphone • Integrated 3W speaker • Class K |
| Camera | • MF 5.0 MP front camera |
| Keyboard & Input | • Touchpad x1 • KB (US) x1 Optional KB (DE)/KB (FR)/KB (EU) • 4 buttons |
| Network & Connectivity | • Intel® Wi-Fi 6 /Wi-Fi 6E (802.11 ax) • Bluetooth® 5.1 • Optional 4G LTE LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 GSM: / • Optional 5G • GPS module |
| Security | • Integrated TPM2.0 • Optional HF-RFID (NFC) reader • Fingerprint scanner • Kensington lock |

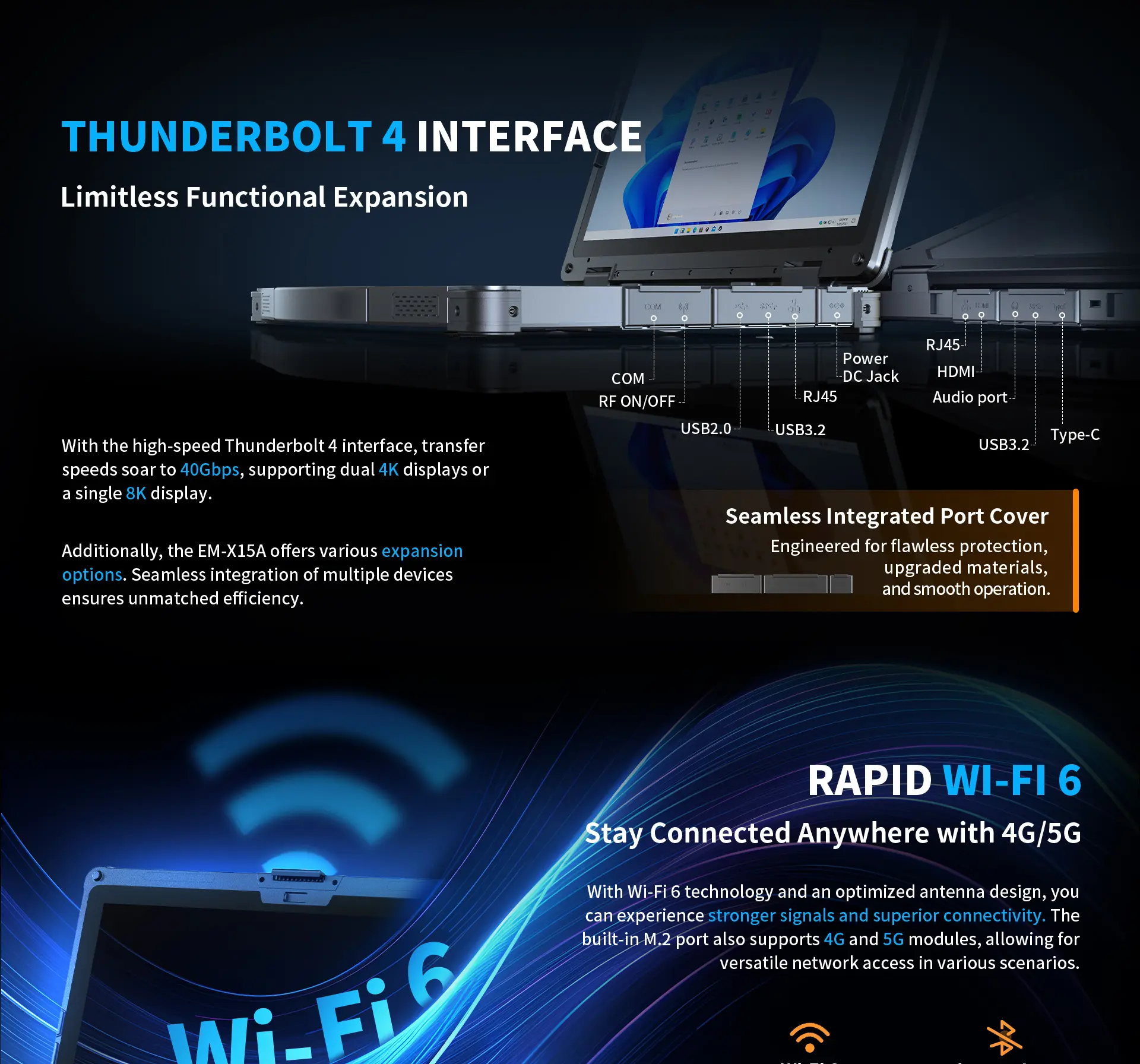

| I/O Interface | • Micro SD card x1 • SIM card x1 • USB 3.2 Gen 2 (Type-A) x1 • Thunderbolt 4 (Type-C) x1 • 3.5mm audio jack x1 • HDMI 2.0a mini x1 • 10/100/1000 Ethernet (RJ45) x2 • Optional 12-pin Pogo pin x1 (charge & USB) • USB 3.2 Gen 1 (Type-A) x1 • USB 2.0 (Type-A) x1 • Serial port (RS232: D-sub, 9-pin) x1 • 5.5 mm DC in jack x1 |
| Expansion Module | • Optional 2nd NVME PCIe SSD • Optional user-definable PCIe module |
| Battery& Charging | • AC adapter: 100-240V, 50Hz-60Hz, 71.82W (19V/3.78A) • Li-ion battery, 11.4V, 4700mAh, 6h20min • Li-ion battery, 11.1V, 1300mAh • Separate RTC 3V/210mAh |
| Environment | • Operating temperature: -20°C to 60°C（-4°F to 140°F） • Storage temperature: -30°C to 70°C（-22°F to 158°F） • Humidity: 95% (non-condensing) |

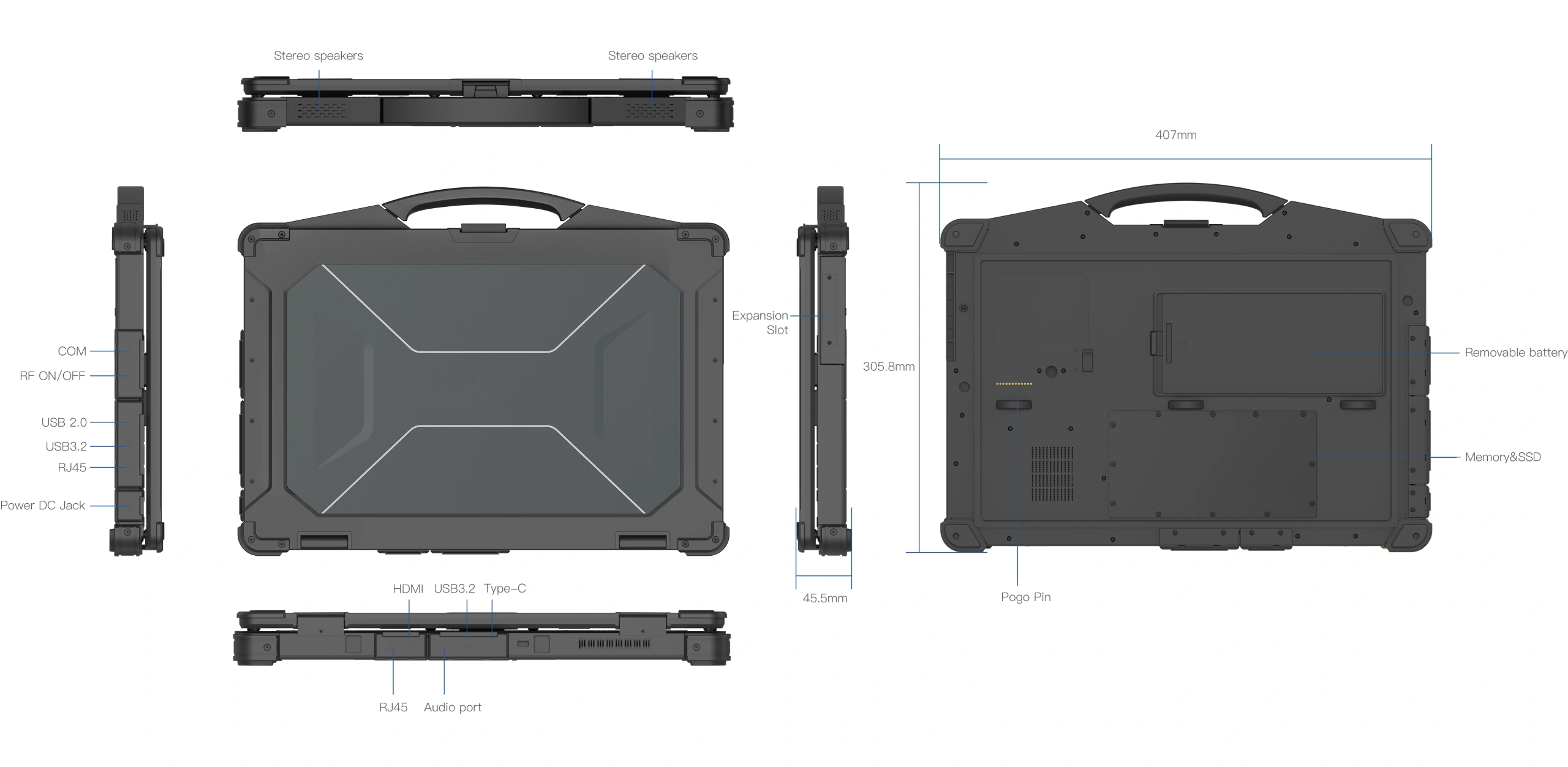

| Dimension | • 407 mm(L) × 305.8 mm(W) × 45.5 mm(H) |
| Weight | • 3.52kg |
| Accessories | • Standard: Adapter, Removable battery • Optional: Quad charging dock |
| Warranty | • One-year limited warranty standard |
Accessories
Standard
Adapter
Removable Battery
Optional
Quad Charging Dock
