P21R

21.5” Android Panel PC

  • Rockchip® RK3568 quad-core processor
  • Android 12 OS
  • 21.5-inch, 1920×1080 FHD resolution
  • 4G/Wi-Fi/BT 5.0 multi-network connectivity
  • Rich interfaces supporting industrial-grade expansion
  • ±15kV air discharge and ±8kV contact discharge
  • Standard PPC hook assembly, supports embedded/ wall-mounted installation
Request A Quote Specification Parameter

Specification Parameter

CPU• RK3568 Quad core
Operating System• Android 12
Memory• RAM: 4GB onboard
• ROM:64GB
Display• Type: LCD
• Size: 21.5 inch 16 :9
• Resolution: 1920×1080
• Brightness: 250 cd/㎡
Touch Pannel• 10 PCAP, G+G

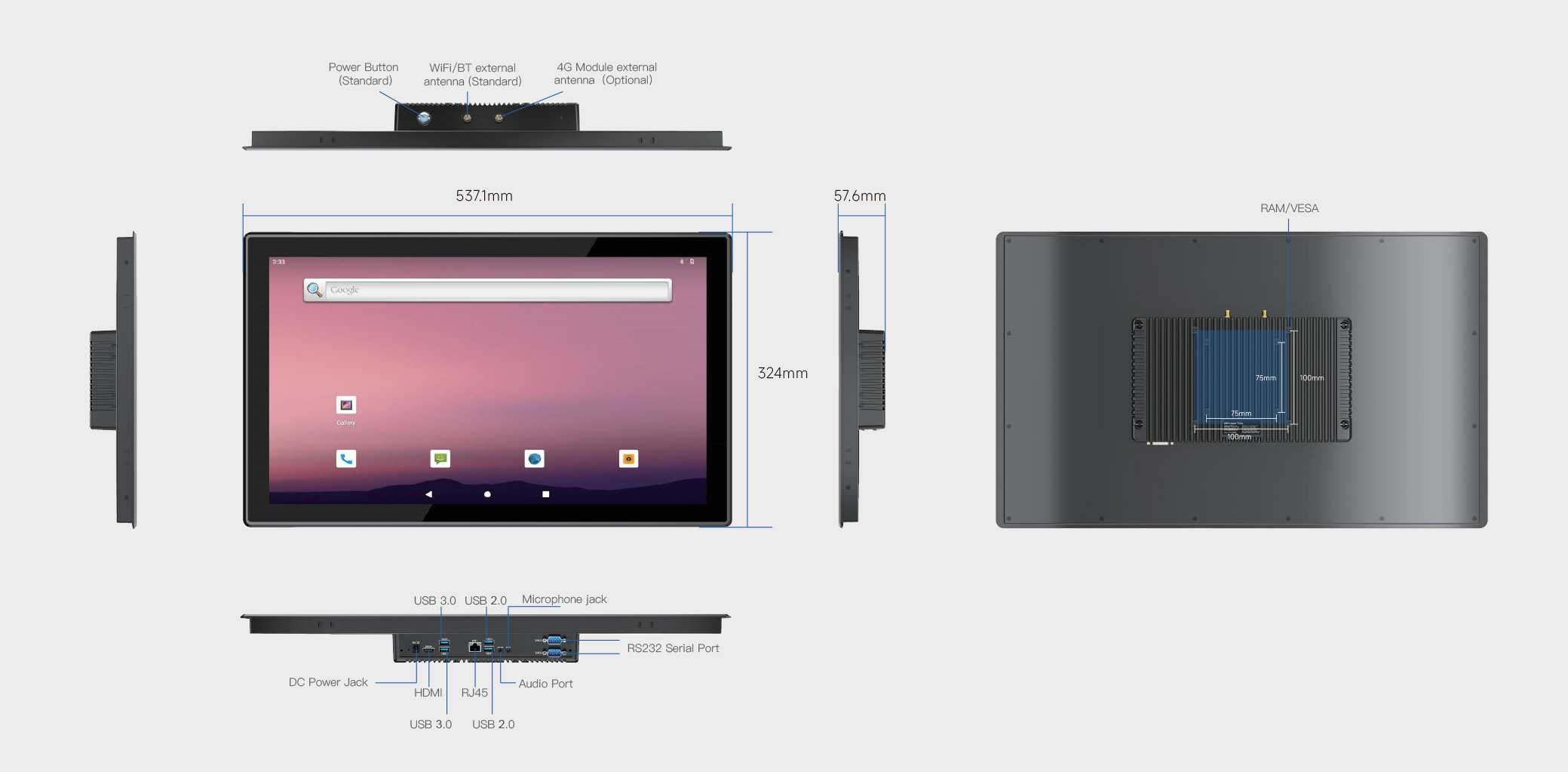

Dimension/Weight• 537.02 x 324.02 x 57.60 mm
• 5.05 kg
Internet• Optional WiFi/BT5.0
• 4G/Dual-band
Certification• Front panel IP65
Rugged Features• Working temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Humidity: 95% Non-Condensing • Electrostatic discharge:
• ± 15kV air discharge
• ± 8kV contact discharge
Adapter• AC100V ~ 240V、50Hz/60Hz
• output DC12V/4A

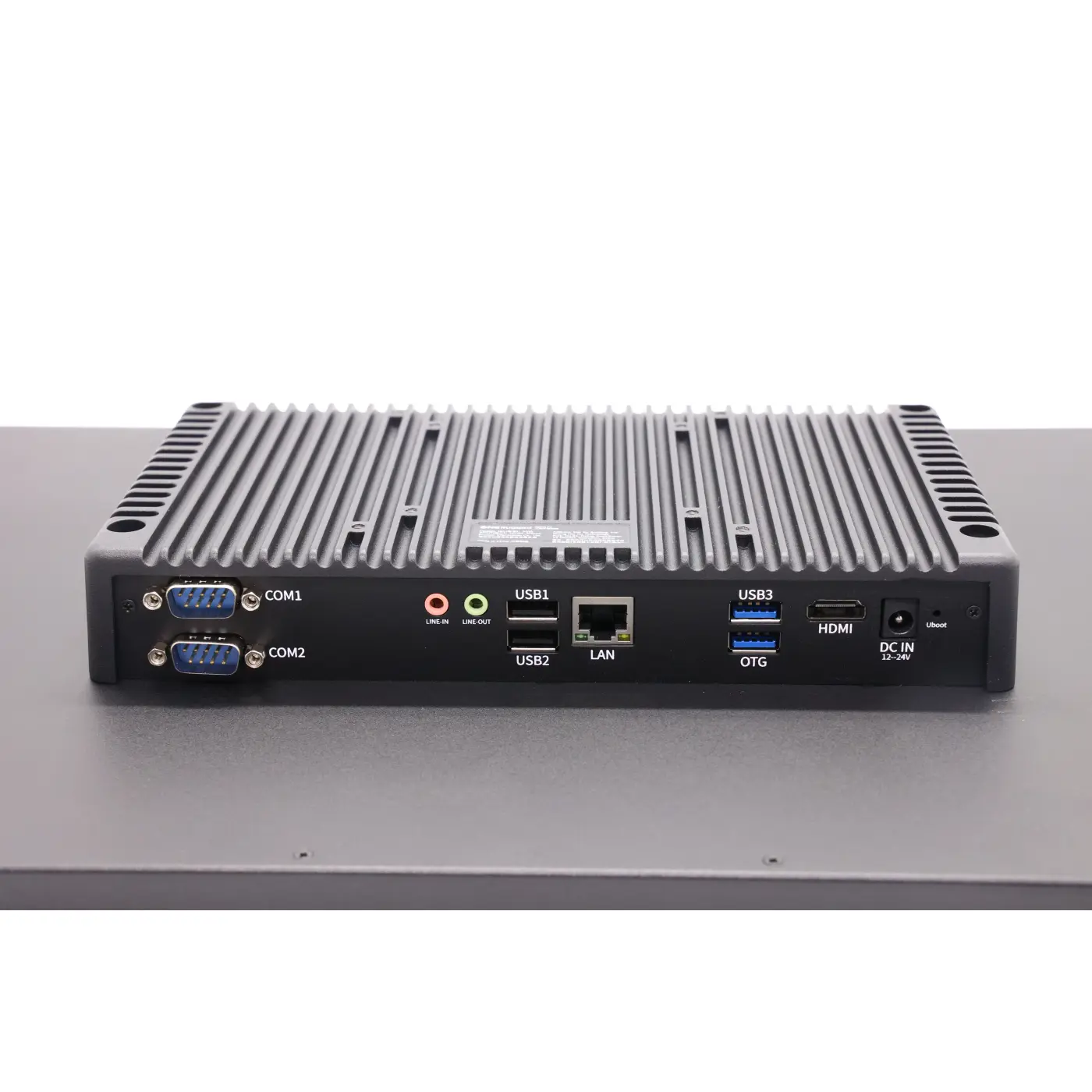

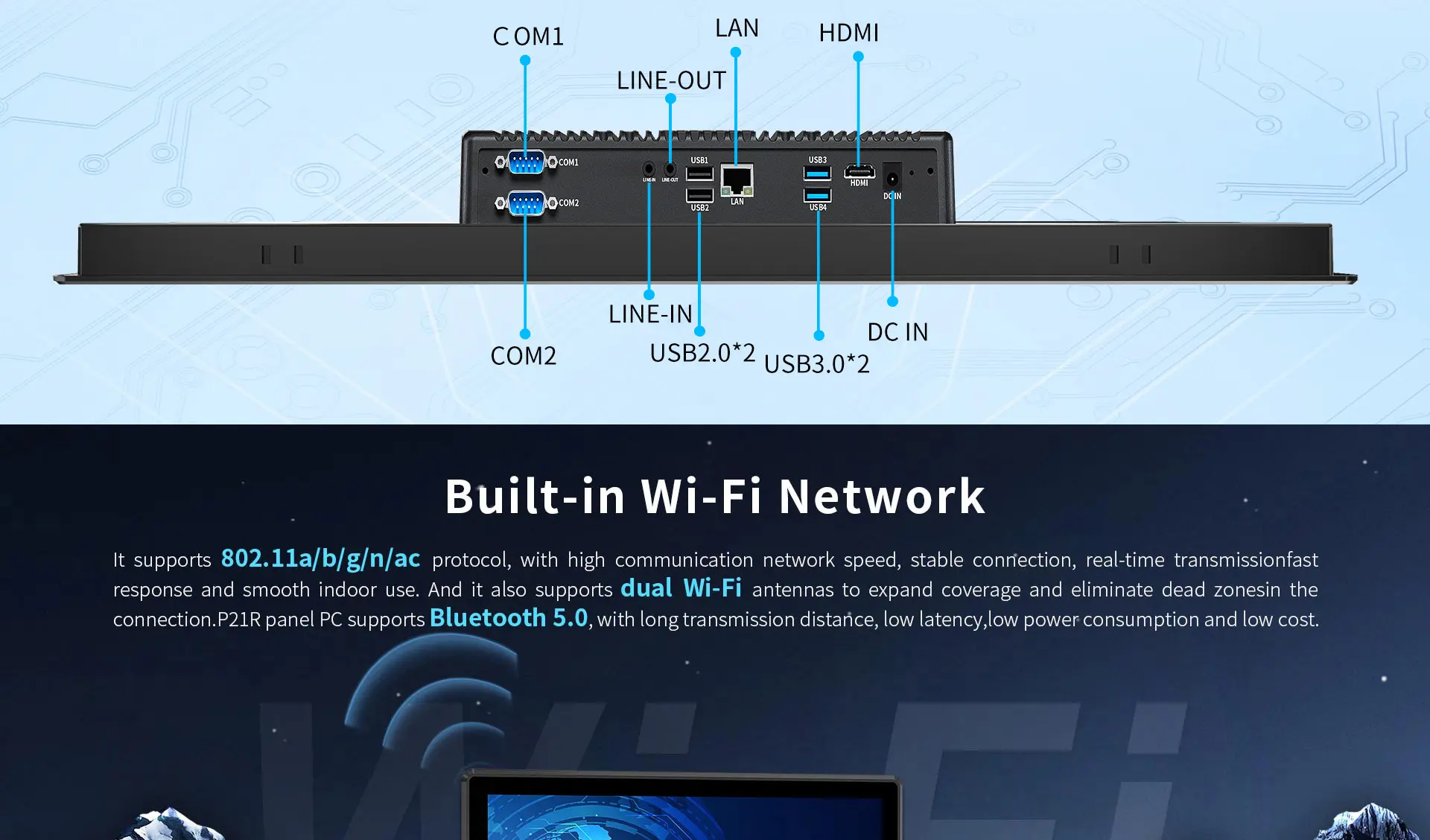

I/O Interface• Standard USB-A
• USB3.0*1, USB3.0*1 OTG, USB 2.0*2
Power interface
• DC IN 12V-24V Power connector *1
• Standard Earphone Jack *1
• RJ45 *1 (10M/100M/1000M adaptive)
• DB9 PORT RS232*2
(Mainboard switchable to RS485: RS485*1, RS232*1) HDMI*1

Accessories

Standard

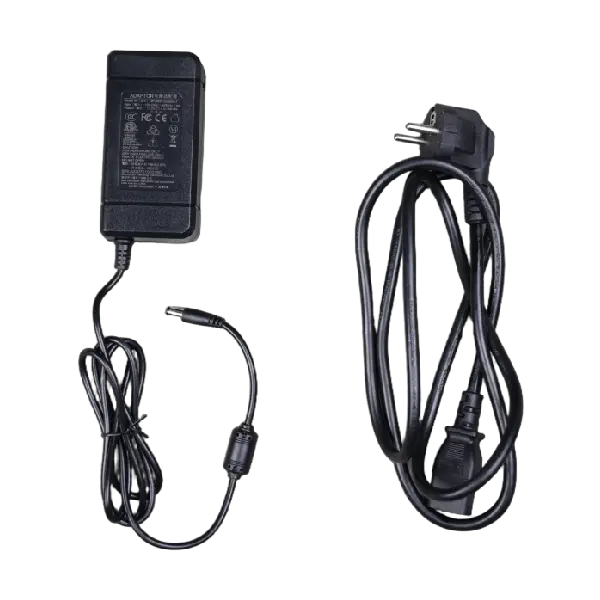

  • Adapter
  • Antenna

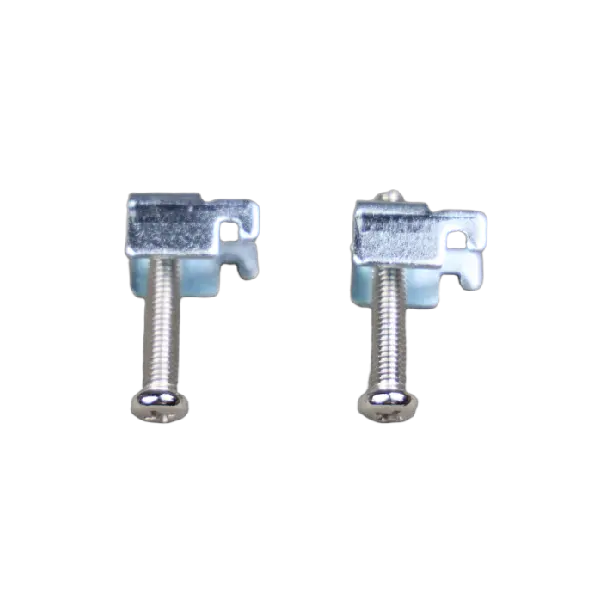

  • PPC Hook Component

Download

P21R

Product Manual Download
