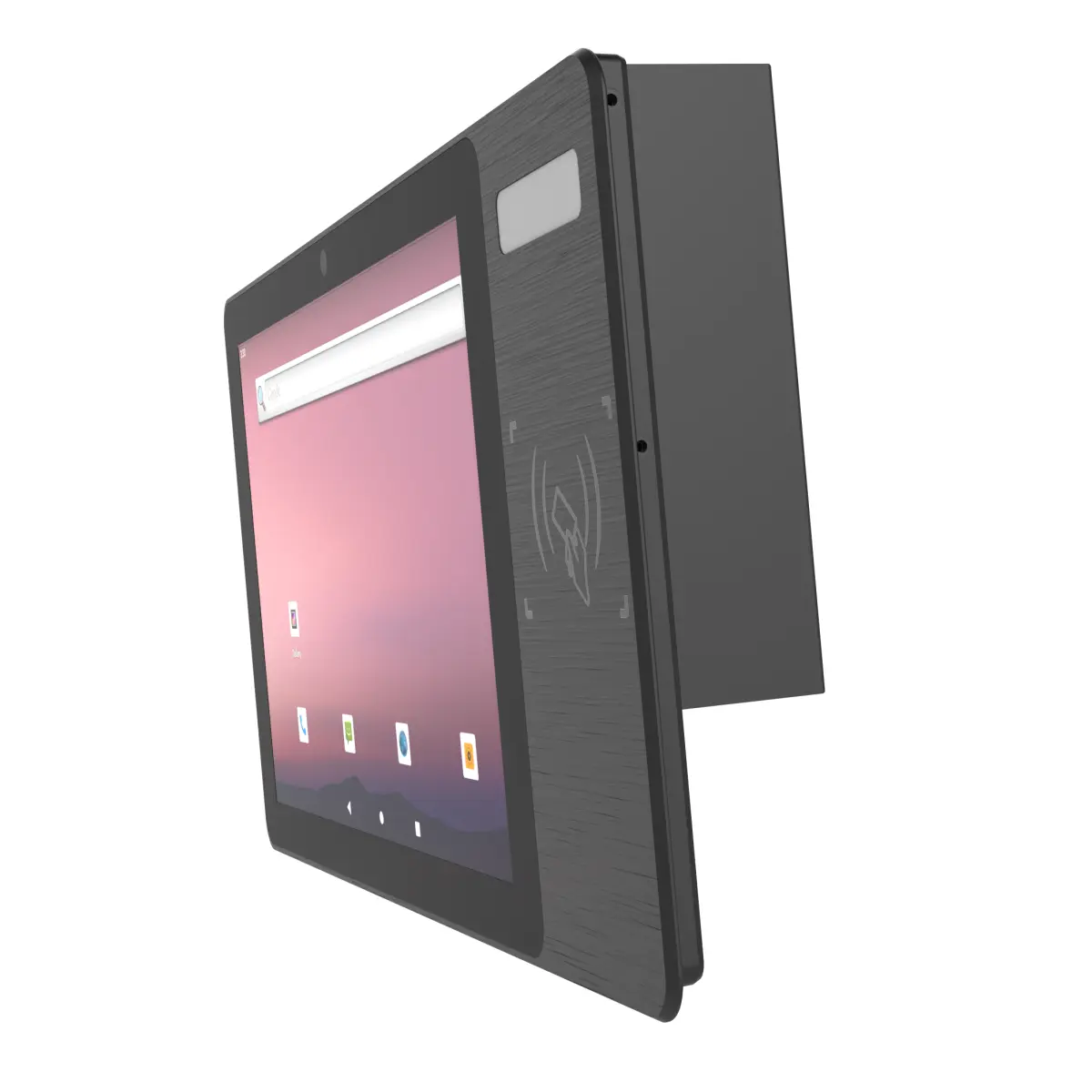

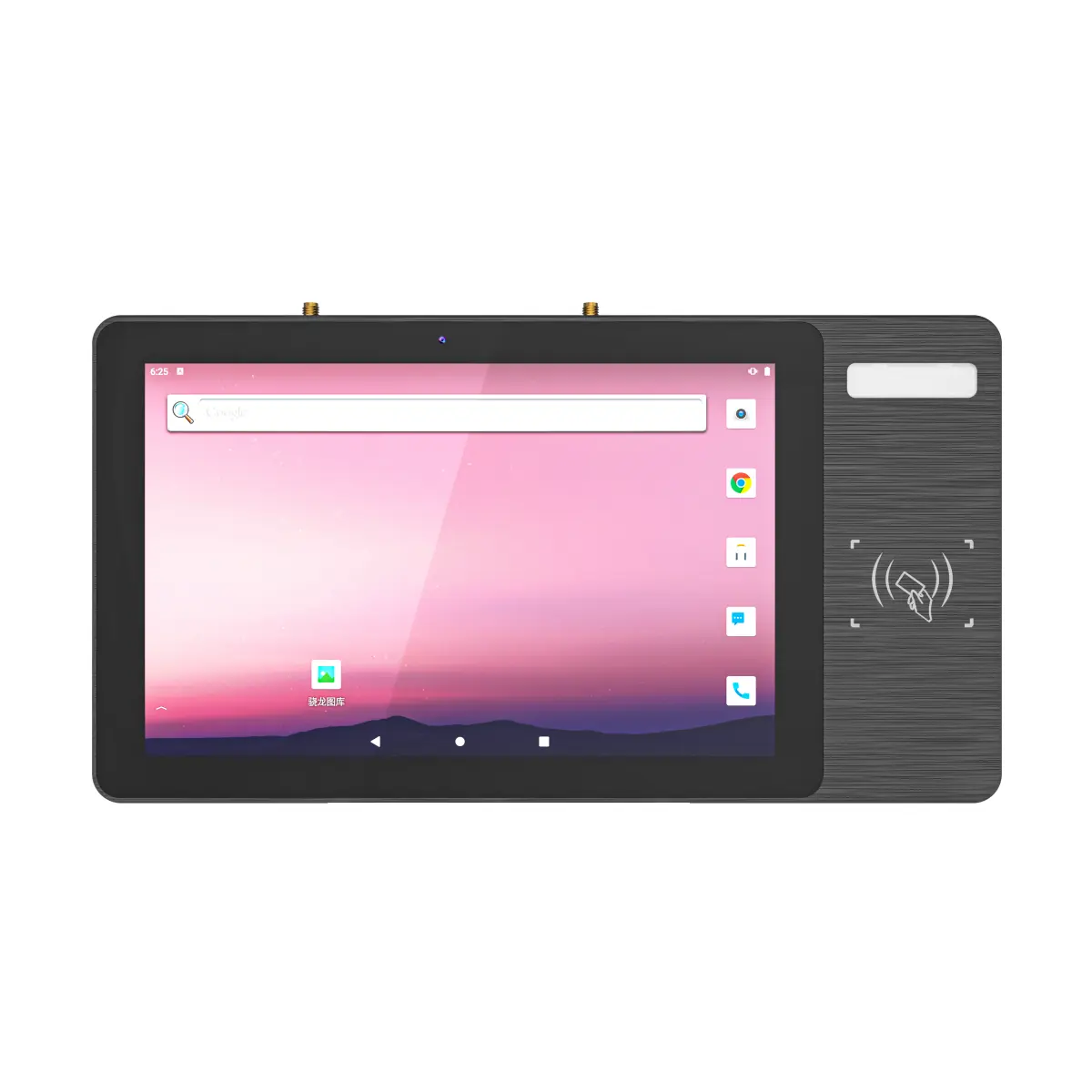

• Versatile Digital Signage D10R

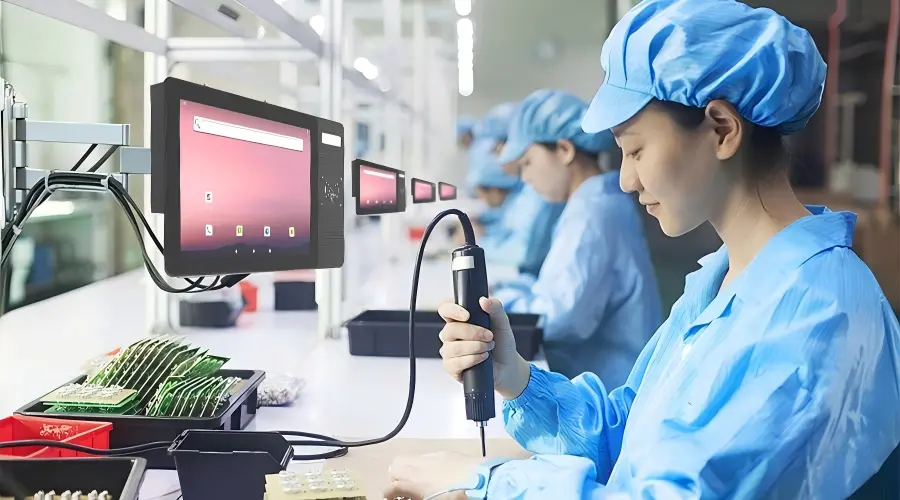

    Top Choice for Workstations

D10R

Digital signage

  • Rockchip® RK3568 quad-core processor
  • Android 12 OS
  • 10.1” 700 nits high-brightness display
  • Rich connectivity with USB/RJ45/Phoenix connector
  • Dual-band Wi-Fi/BT 5.0/optional 4G wireless communication
  • Comprehensive features with modular design options
  • Supports 24/7 continuous operation
  • Operates across 12V-24V wide voltage and -20°C to 60°C wide temperature ranges
  • IP65-rated front panel with dual-band NFC integrated card reader
Request A Quote Specification Parameter

Specification Parameter

CPU• RK3568Operating System• Android 12
Memory• RAM 4GB
• ROM 64GB		Display• Type: LCD
• Size: 10.1 inch 16:10
• Resolution: 800*1280
• Brightness: 700cd/m

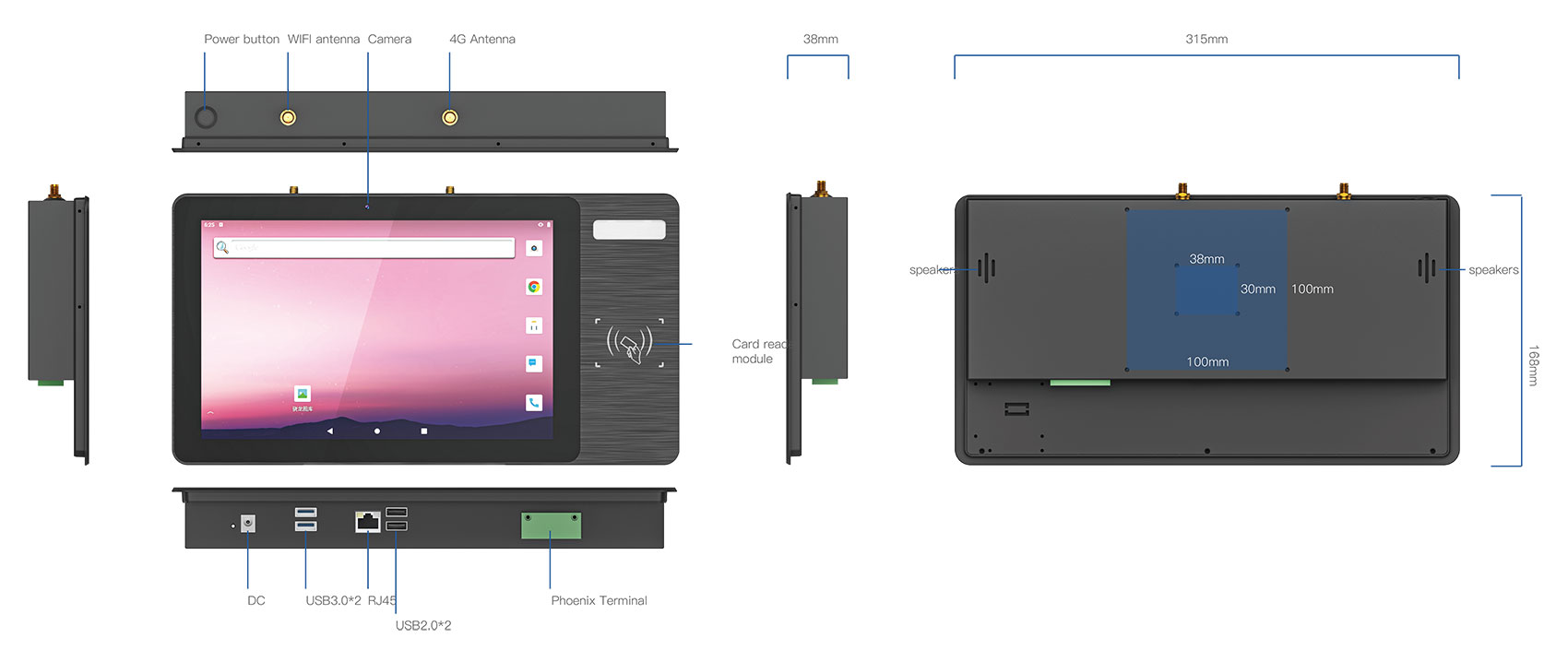

Touch Pannel• 10-point capacitive touchDimension• 315mm*168mm*38mm
WiFi• WIFI 802.11(a/b/g/n/ac) 2.4G+5GBluetooth• BT 5.0
Internet(Optional)• 4GColor• Black (Optional silver)
I/O Interface• SIM*1 TF*1 (Internal)
• Type A USB (External)
• USB3.0*1 + USB3.0*1 OTG + USB2.0*2 Power Port
• DC 12V *1+Phoenix Terminal
• RJ45 *1 (10/100/1000M Adaptive)		Functions• Standard:
LED indicator light built-in
Card reader module
Working frequency: 13.56M+125K
• Optional:
External alarm light
Barcode scanner module
Fingerprint module4G module
USB mini keyboard
Regular or facial recognition camera
Rugged Features• Working temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Humidity: 95% Non-Condensing		Certification• IP65 Front panel
  • Powered by the industrial-grade, power-efficient flagship chip RK3568
  • Equipped with the Android 12 OS, and 4+64GB storage configuration
  • Gigabit adaptive Ethernet, dual-band WiFi, BT5.0, optional 4G module
  • USB Type-A/Gigabit Ethernet port/Phoenix terminal interface and more
  • Integrated LED tri-color indicator, optional camera or face recognition
  • Optional barcode scanner/fingerprint module to meet card reading needs
  • Support 7×24H stable operation under wide range of voltage fluctuations
  • IP65-rated front panel, dual-frequency NFC, combining versatility with safety

Accessories

Optional

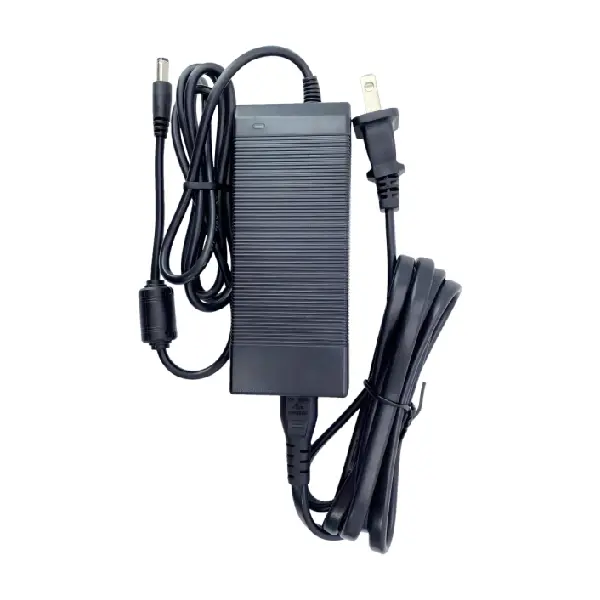

  • 12V/4A Adapter
  • Antenna 2.4-2.5/5.15-5.85GHZ 2dBi (SMA)
