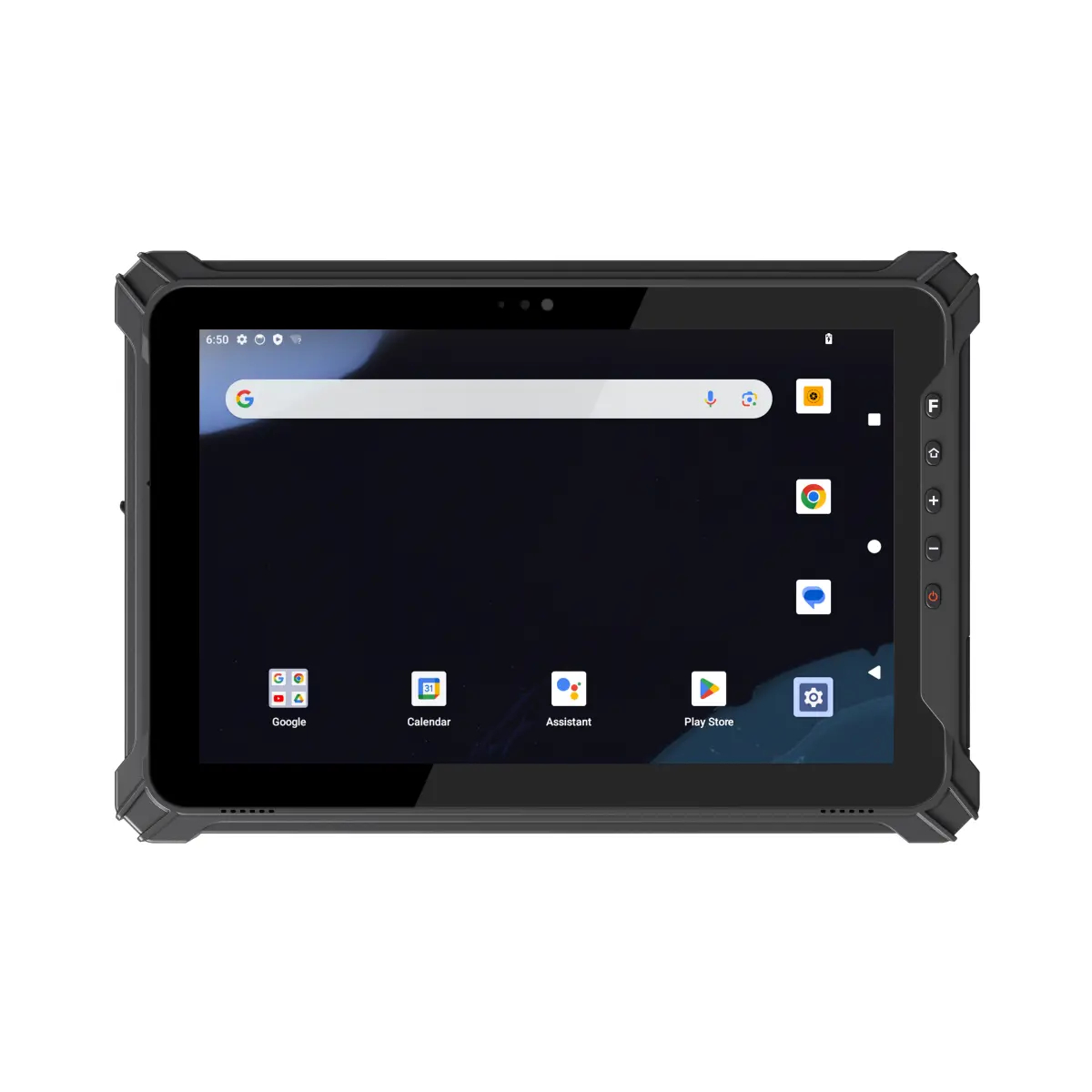

T17X (GMS)
Rugged Tablet PC
- MT6789 octa-core processor
- Android 14/GMS, optional Android 12/GMS
- 10.1” HD high-brightness display
- Front 5.0MP, rear 13.0MP
- RJ45/RS232/USB 2.0 3-in-1 module
- 10000mAh/3.8V removable battery with battery-free operation support
- 4G/dual-band Wi-Fi/BT 5.1 multi-communication modes
- Supports barcode scanning & NFC module
Specification Parameter
Basic parameters

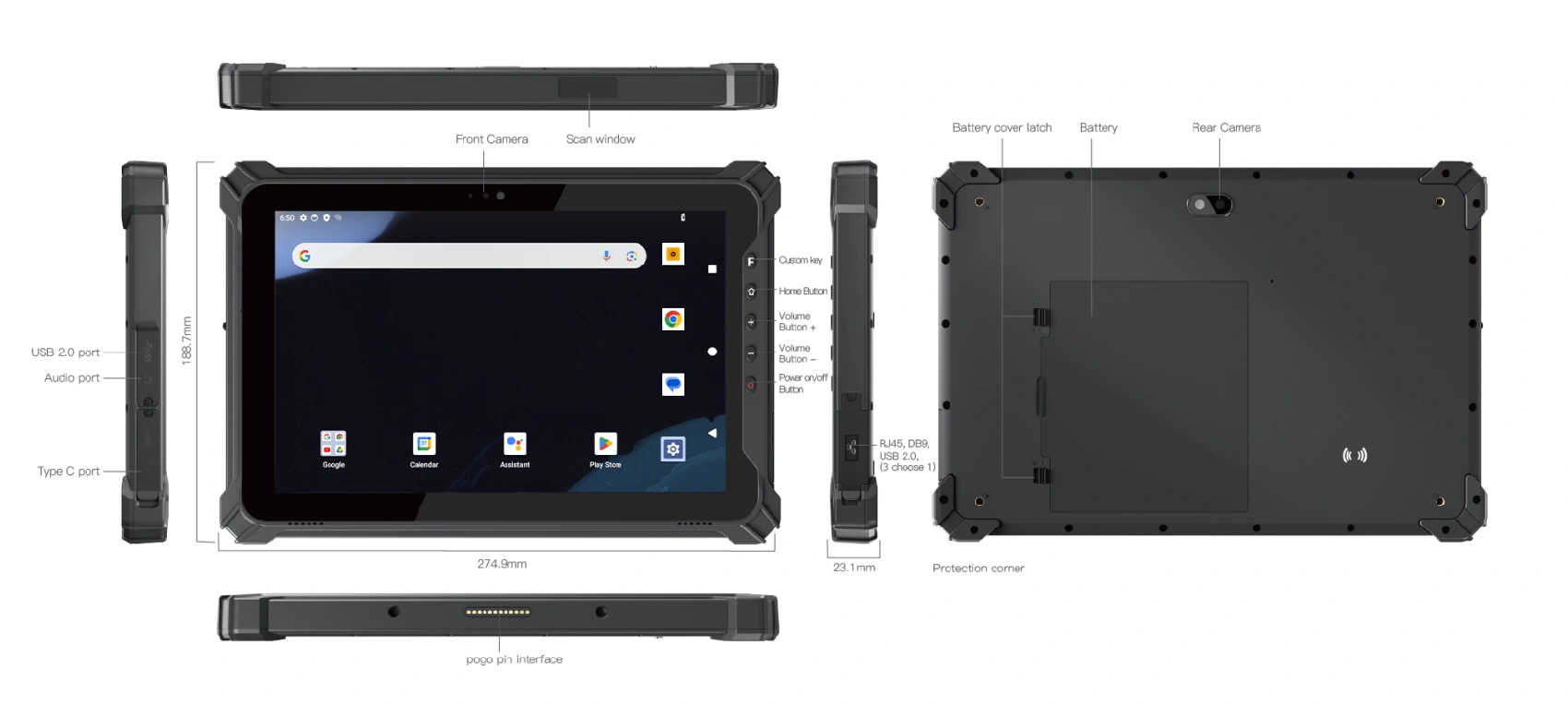

| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1140g |
| Device Color | Black |

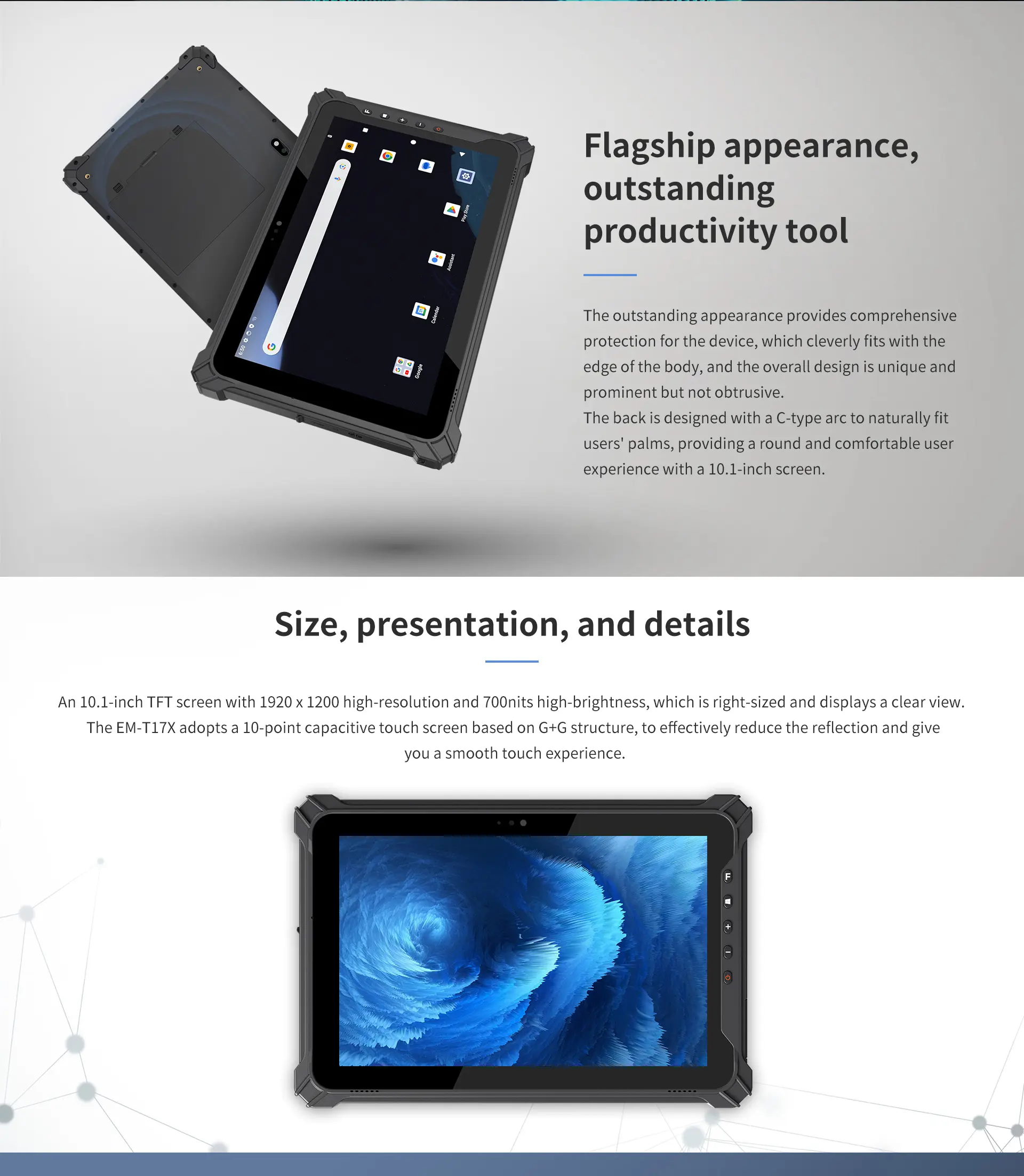

| LCD | 10.1 inch TFT 16:10, 1920×1200, 700nits |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 13.0MP |

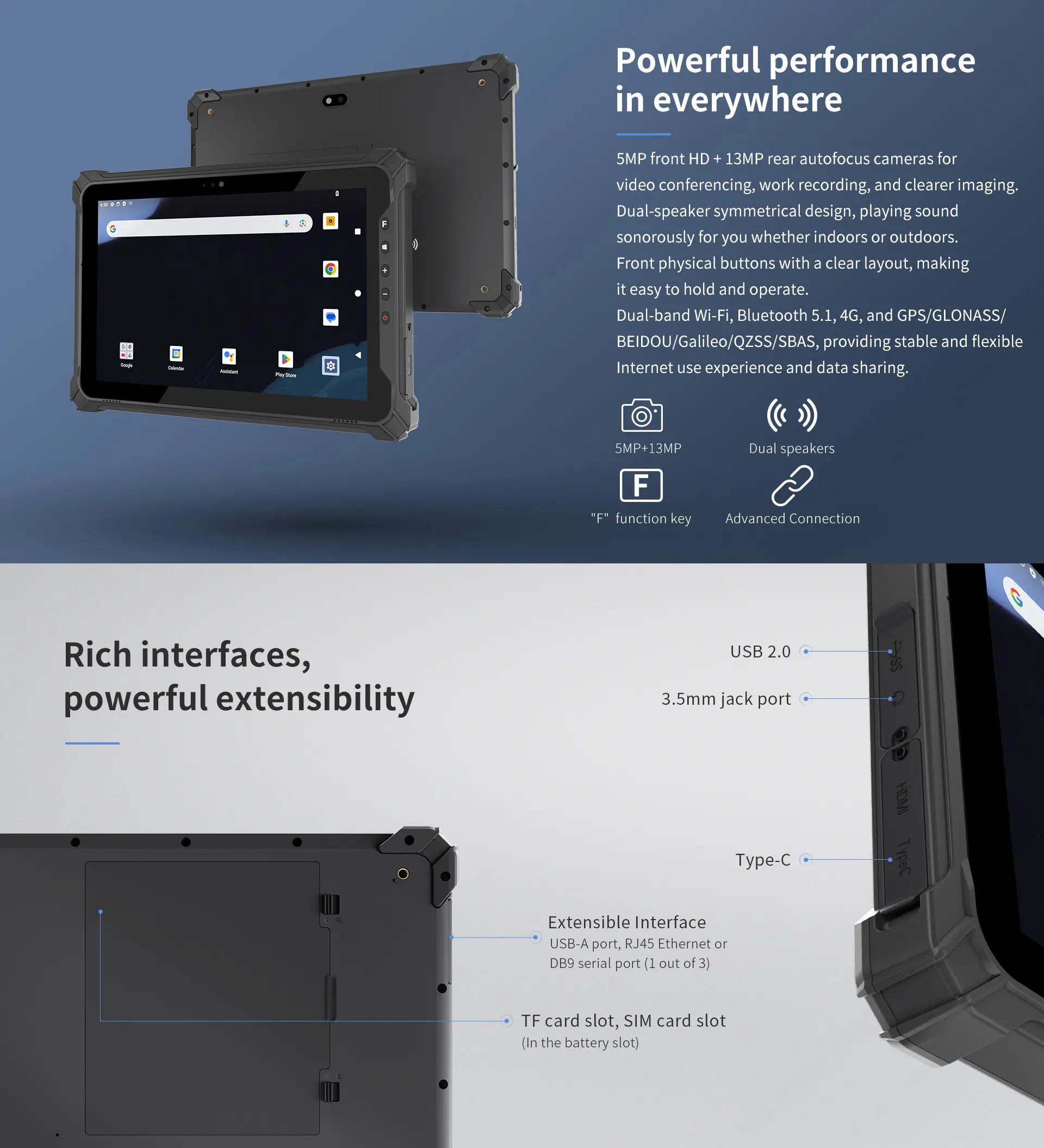

| I/O | USB 2.0 Type-A x 1, USB Type-C x 1, SIM Card x 2, TF Card (Three in one card holder), 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) | RJ45 (10/100M) x 1 (standard), DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A |
Communication
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT5.2 Transmission distance: 10m |
| 4G | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B, WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8，LTE-TDD: B38/B39/B40/B41 |
| GNSS | Support, GPS, Glonass, Beidou, Galileo, QZSS, SBAS |
Performance parameter
| CPU | ARM (OCTA Core) |
| OS | Android 14/GMS, optional Android 12/GMS |
| RAM | 8GB |
| ROM | 128GB |
Battery

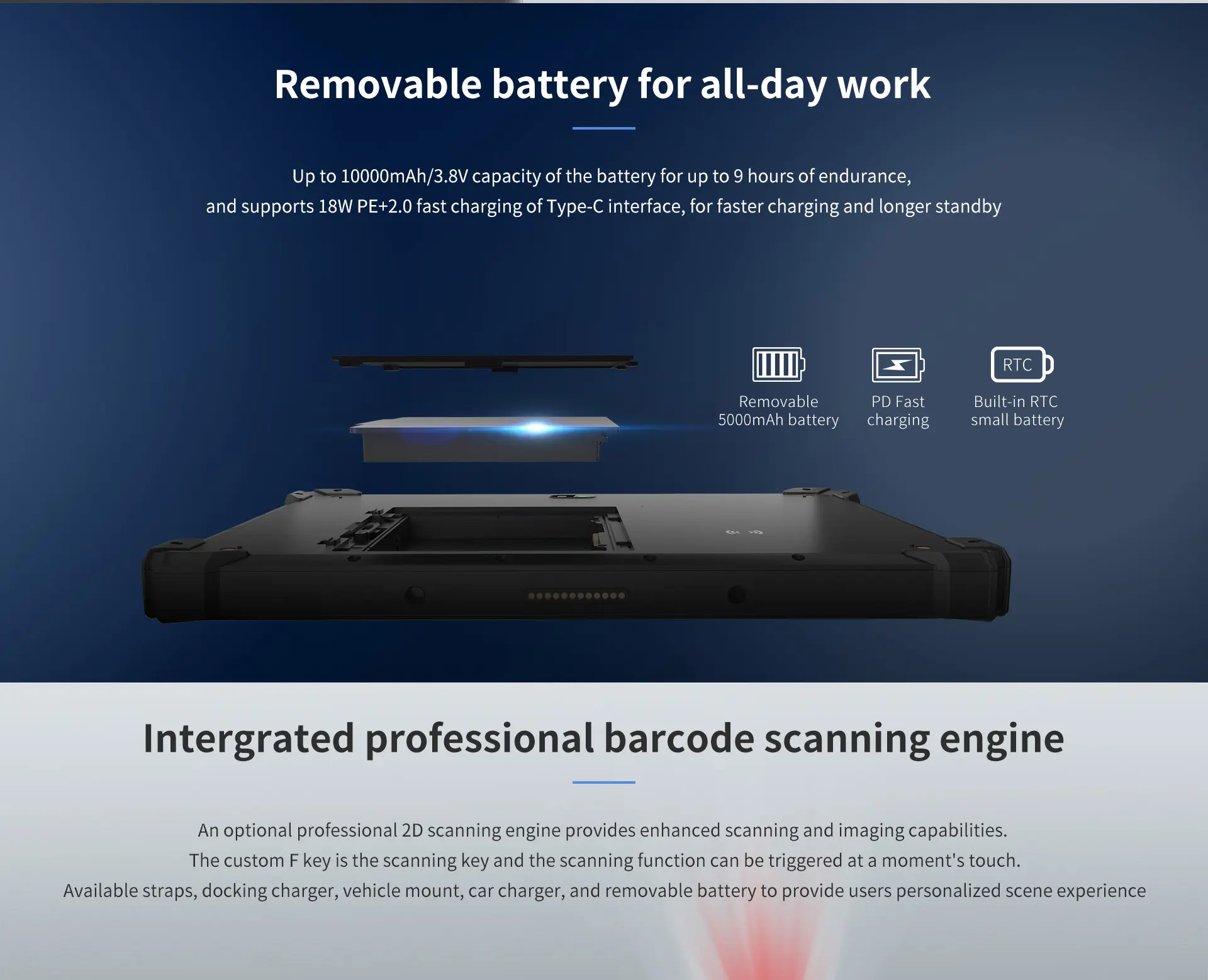

| Capacity | 10000mAh/3.8V |
| Type | Removable Li-polymer battery |
| Endurance | 9hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
Reliability
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m drop |
Data Collection
| NFC | 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
| 2D | Optional |
Accessories
Standard
Fast charging adapter

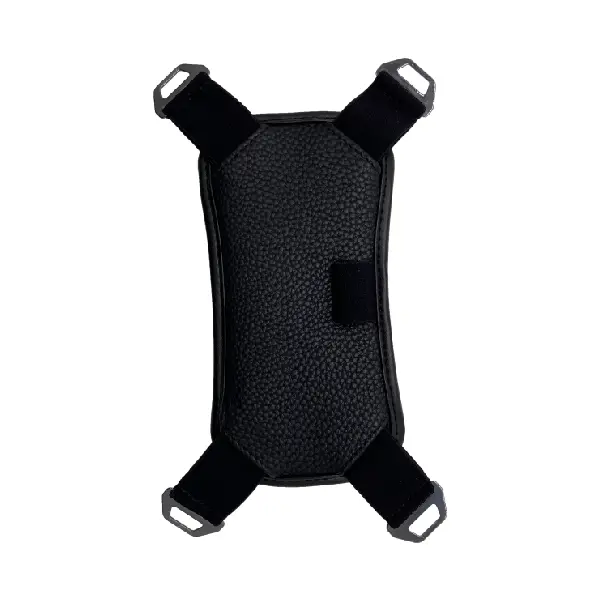

Hand-strap
Optional
Removable battery
Vehicle Mount
Docking Charger
Download
T17X
Product Manual Download
Related Products
I16J

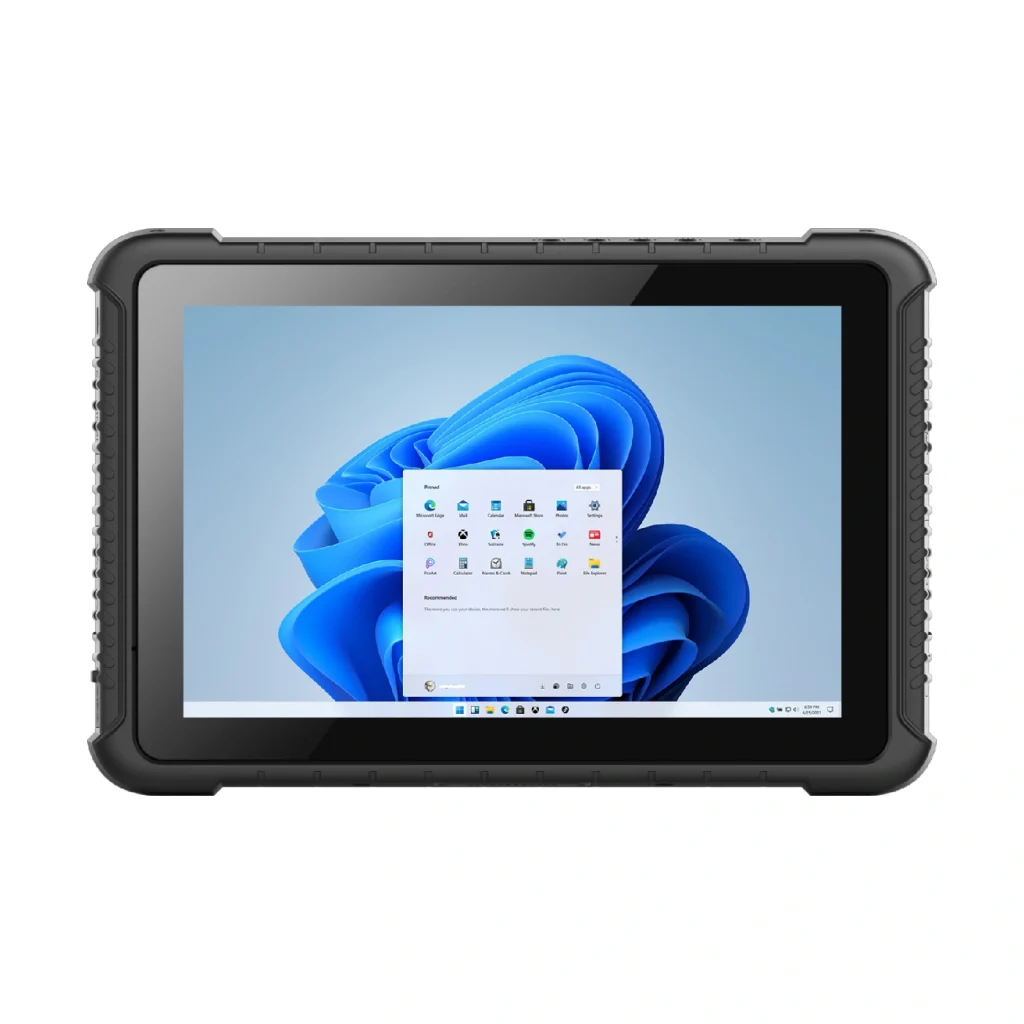

Windows 11/10 OS丨USB 3.0/Type-C/DB9/RJ45/HDMI ports丨IP65丨1D/2D barcode scanning, NFC, fingerprint recognitionT11X

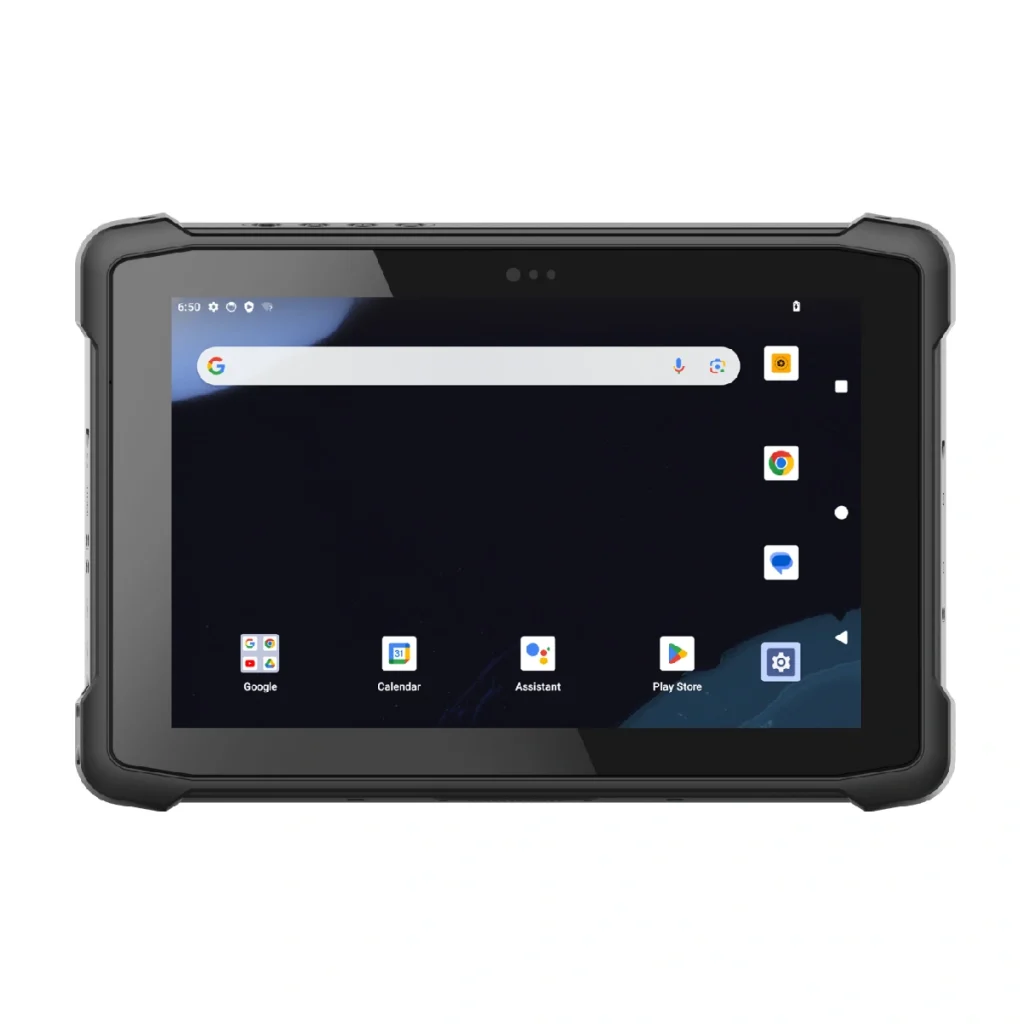

10.1”丨MT6789 processor丨Android 14/GMS丨IP65丨GPS + GLONASS + BeiDou丨2D NFC丨8000mAhT86X

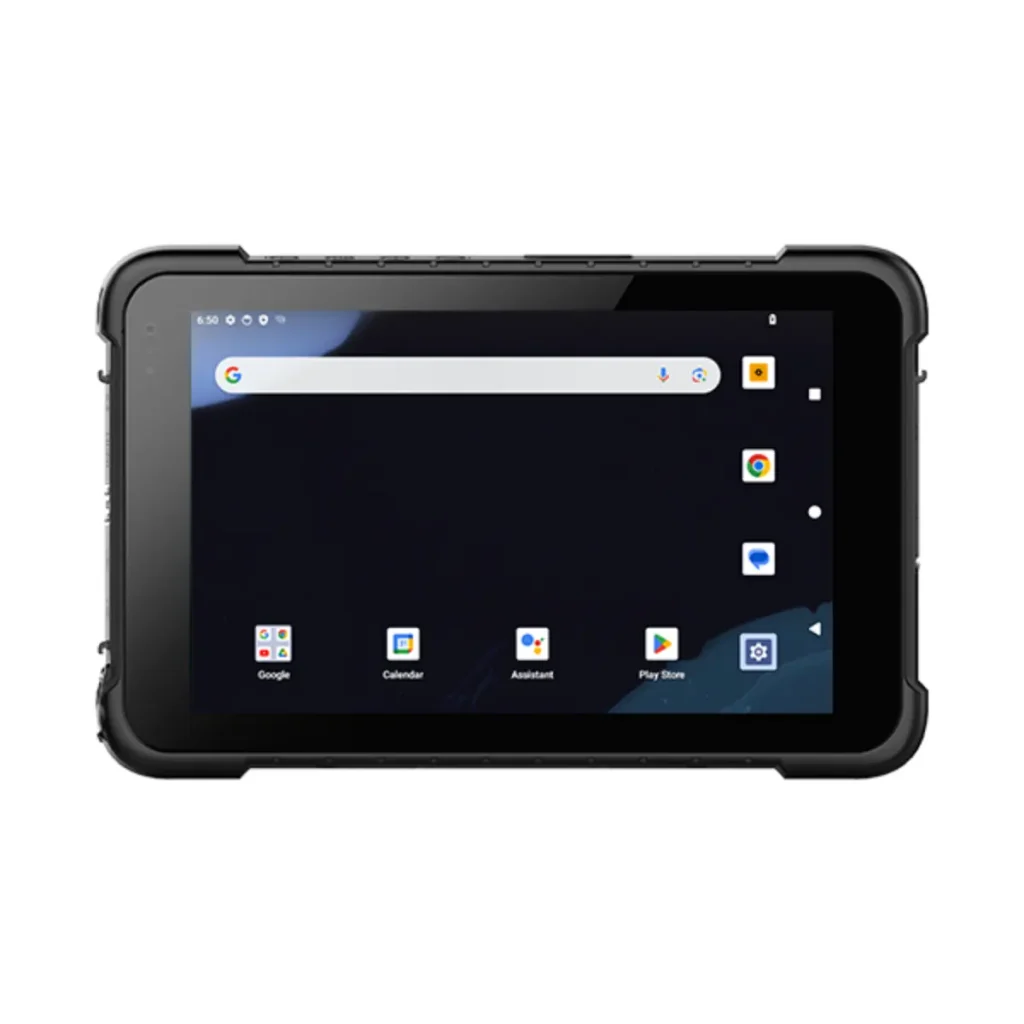

MT6789 processor 丨Android 14/GMS丨IP67丨8”丨4G/dual-band Wi-Fi/BT 5.1 multiple丨8500mAhI61J

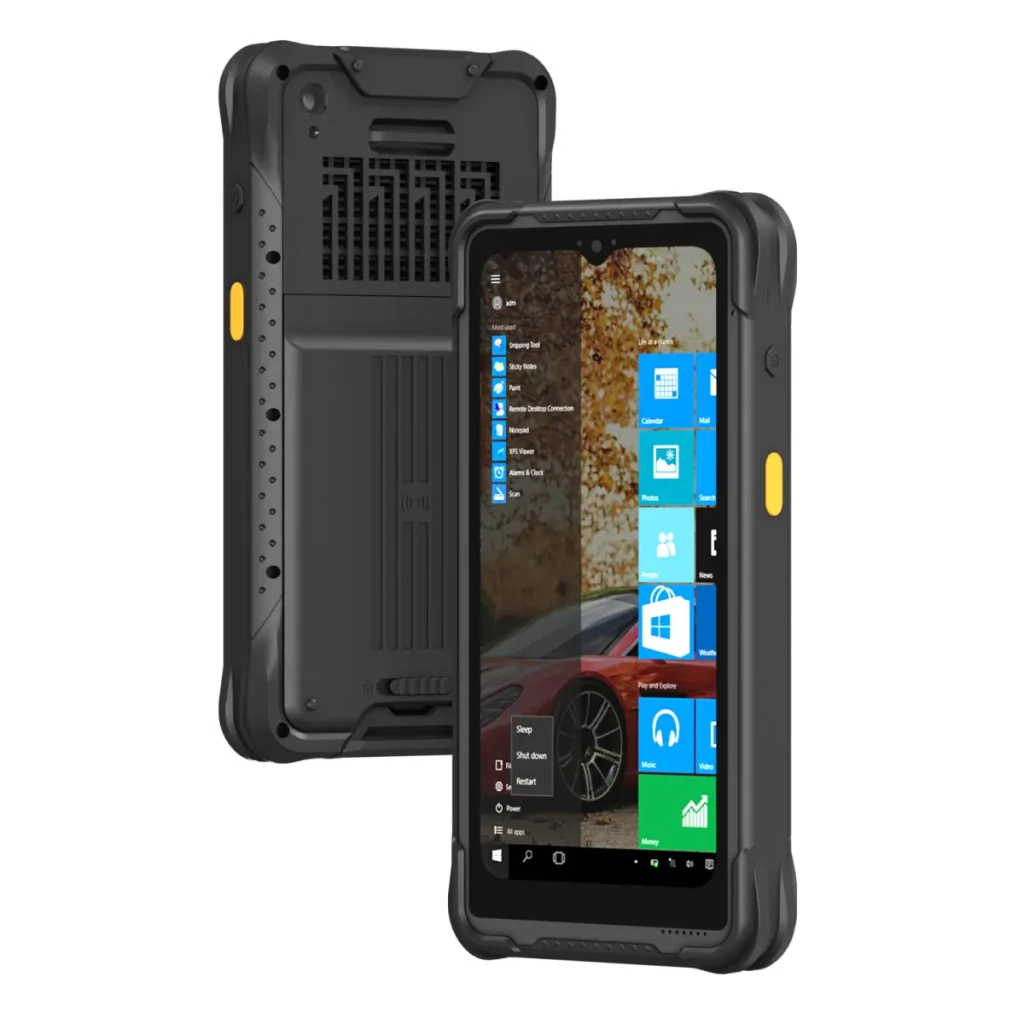

PC+TPU material丨6.5 inch丨Windows 11/10丨Intel 5100丨4G NFC GPS BT5.0丨2D丨4000mAh
